15person marine sewage treatment plant
1.water-oil separate type .
2.no smoke .
3.oil saving fryer machine.

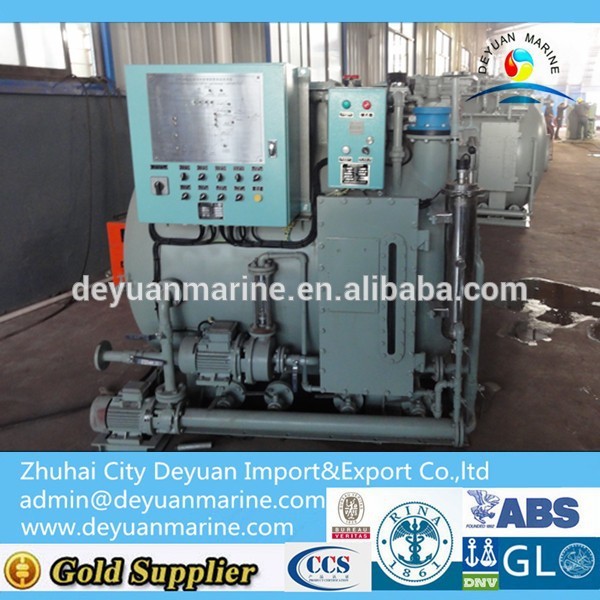

Marine Sewage Treatment Plant
Marine Sewage Treatment Plant
China Deyuan Marine Fitting Co.ltd is a professional supplier of marine equipment,such as 15ppm bilge separator,15ppm oily water separator
,15ppm bilge alarm,oil content meter,marine sewage treatment plant etc.Pls contact us for more details if you are interested.
Main Technical Table
Model | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 80 | 100 | 150 | 200 | 250 | |||
Load | Average load L/d | 1190 | 1540 | 1890 | 2310 | 3080 | 3780 | 4480 | 6020 | 7700 | 11200 | 14700 | 18200 | ||
Peak load L/h | 149 | 193 | 237 | 289 | 385 | 473 | 560 | 753 | 963 | 1400 | 1838 | 2275 | |||
Organic load kgBOD5/d | 0.595 | 0.77 | 0.945 | 1.155 | 1.54 | 1.89 | 2.24 | 3.01 | 3.85 | 5.6 | 7.35 | 9.10 | |||
Rated capacity(P) | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 80 | 100 | 150 | 200 | 250 | |||
Max capacity(P) | 17 | 22 | 27 | 33 | 44 | 54 | 64 | 86 | 110 | 160 | 210 | 260 | |||
Electricity | AC380V, 50HZ, 3φ/AC 440, 60Hz, 3φ | ||||||||||||||
Power(KW) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 2.0 | 2.0 | 2.5 | 2.5 | 3.0 |
| ||||
External dimensions L*W*H(mm) | 1550× 1400× 1600 | 1650× 1400× 1600 | 1850× 1500× 1635 | 1950× 1500× 1635 | 1800× 1700× 1900 | 1900× 1700 1950 | 2100× 1700× 2000 | 2500× 1900× 2150 | 2500× 1900× 2300 | 3150× 2400× 2300 |
| ||||
Weight
| Dry weight (Kg)
| 1150 | 1200 | 1250 | 1350 | 1500 | 1750 | 1950 | 2150 | 2900 | 3800 |
| |||
Wet weight (Kg)
| 2600 | 2933 | 3210 | 3928 | 4689 | 5665 | 6486 | 8100 | 10400 | 14680 |
| ||||
Discharge standard | TSS35mg/L, BOD525mg/L, COD125mg/L, Coli form100pcs/100ml, PH:68.5 | ||||||||||||||
