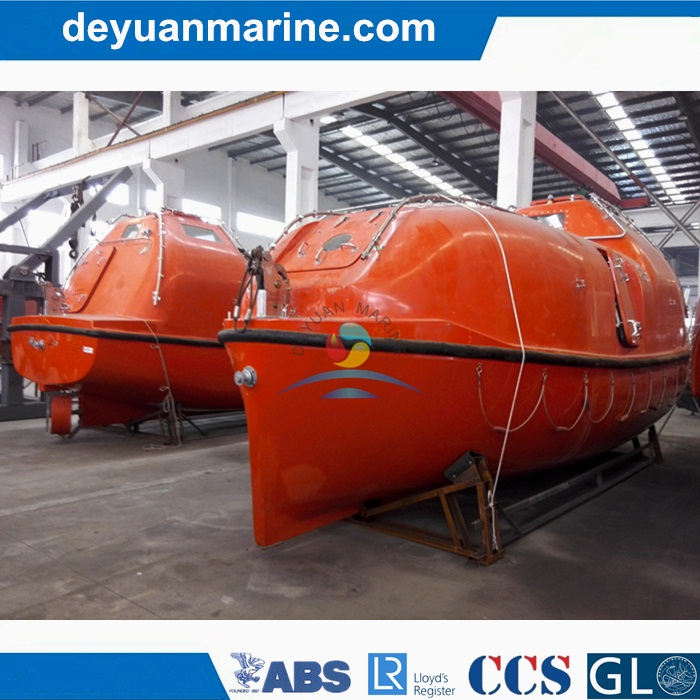

6.5M Totally Enclosed lifeboat
Overview:
The most popular series,F.R.P totally enclosed free fall lifeboat is developed from totally enclosed lifeboat.
The construction is specially strengthened to have light acceleration strike during water entry that can be completed
within seconds and escape rapidly from the vessels with longer self-stability.
Specifications:
1.Material:F.R.P.
2.Certificate:CCS,EC,BV,ABS,BV.
3.Capacity:3~61Person.
4.Standard:ISO9001:2000 and Maritime Equipment Directive(MED).
Parameters:
Model | Main DIM. (M) | Capacity (p) | Length of Ramp(m) | Speed (knots) | Drop height (m) | Davit load (kg) |
DY-FN-4.90 | 4.90*2.25*0.86 | 16 | 5.90 | >6 | 16 | 4040 |
DY-FN-4.90 | 4320 | |||||
DY-FN-5.80 | 5.8*2.55*0.90 | 25 | 7.0 | >6 | 17 | 5560 |
DY-FF-5.80 | 5890 | |||||
DYM-FN-6.65 | 6.65*2.70*1.20 | 30 | 8.2 | >6 | 21 | 6337 |
DYM-FF-6.65 | 6637 | |||||
DY-FN-6.80 | 6.80*2.70*1.20 | 31 | 8.20 | >6 | 22 | 6439.5 |
DY-FN-6.80 | 6739.50 | |||||
DY-FN-7.50 | 7.50*2.70*1.20 | 35 | 9.0 | >6 | 22 | 7374 |
DY-FF-7.50 | 7724 | |||||
DY-FN-8.50 | 8.80*2.94*1.20 | 40 | 10.2 | >6 | 25 | 8422 |
DY-FF-8.50 | 8722 |
