LFY-type exhaust gas economizer for sale
LFY-type exhaust gas economizer for sale

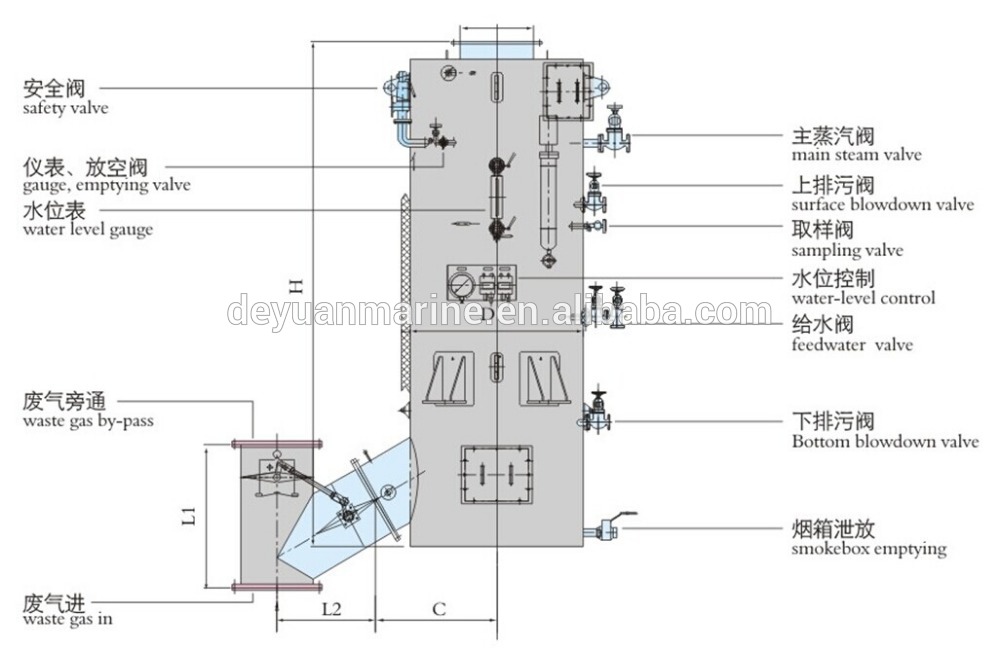

type and specs | heating surface(m2) | working pressure(Mpa) | engine power(kw) | dimensions(mm) | weight(kg) | |||
H | D | D1 | C | |||||
LFY35-0.7 | 35 | 0.7 | 1100-1600 | 3320 | 1020 | 400 | 750 | 3000 |
LFY55-0.7 | 55 | 0.7 | 1800-2400 | 3520 | 1220 | 500 | 850 | 3800 |
LFY70-0.7 | 70 | 0.7 | 2300-3000 | 3520 | 1320 | 500 | 900 | 4400 |
LFY85-0.7 | 85 | 0.7 | 3000-3800 | 3520 | 1450 | 600 | 1000 | 5600 |
LFY100-0.7 | 100 | 0.7 | 3500-4500 | 3520 | 1550 | 600 | 1050 | 7000 |
LFY120-0.7 | 120 | 0.7 | 4500-5500 | 3600 | 1920 | 9000 | ||
LFY150-0.7 | 150 | 0.7 | 5500-6500 | 3700 | 2020 | 11000 | ||
LFY180-0.7 | 180 | 0.7 | 6500-8000 | 3700 | 2220 | 13500 |
Note:
1.Dimensions and orientation of boiler are adapted to customer's need.
2.The data in the lable is only for reference and subject to be change without notice.
3.The types in the lable are a part of our products. Please contact us if you need other types.
