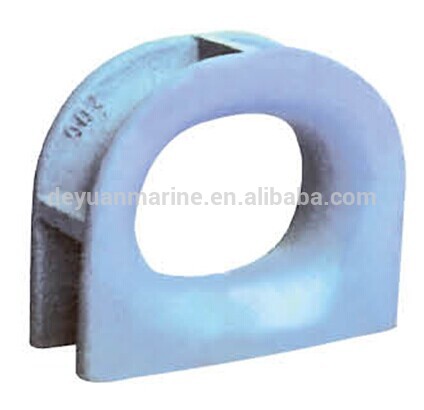

Marine Mooring Closed Chocks with good price
Marine Mooring Closed Chocks with good price
Marine Mooring Closed Chocks with good price

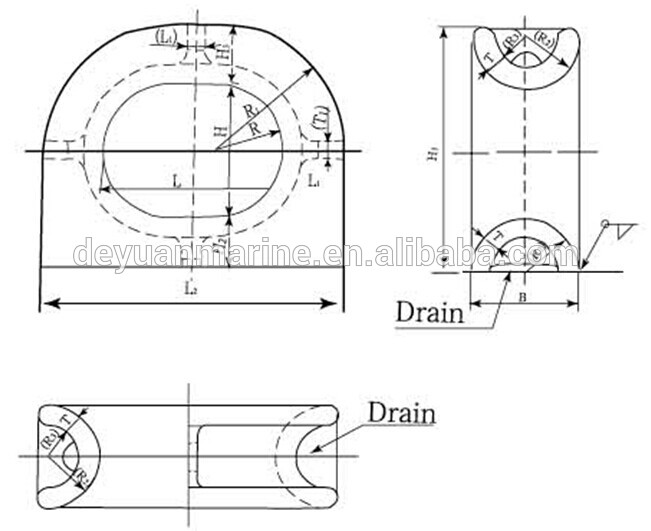

Nominal DIA(mm) | L | L1 | L2 | L3 | L4 | B | H | H1 | H2 | H3 | R | R1 | R2 | R3 | r1 | r2 | T | T1 | Calculated mass(kg) | DIA of applicable rope in reference(mm) | |
DIA of wire rope | DIA of hemp rope | ||||||||||||||||||||
250 | 250 | 92 | 100 | 250 | 434 | 160 | 200 | 372 | 80 | 92 | 100 | 192 | 80 | 56 | 20 | 15 | 24 | 20 | 48 | 20(6×12) | 50 |
300 | 300 | 114 | 110 | 300 | 528 | 200 | 250 | 464 | 100 | 114 | 125 | 239 | 100 | 72 | 25 | 20 | 28 | 22 | 83 | 22.4(6 x12) | 60 |
350 | 350 | 125 | 125 | 350 | 600 | 220 | 250 | 485 | 110 | 125 | 125 | 250 | 110 | 80 | 30 | 20 | 30 | 22 | 103 | 24(6x 24) | 70 |
400 | 400 | 136 | 135 | 370 | 672 | 240 | 250 | 506 | 120 | 136 | 125 | 261 | 120 | 88 | 30 | 20 | 32 | 25 | 136 | 26(6x 24) | 80 |
450 | 450 | 148 | 150 | 400 | 746 | 260 | 250 | 528 | 130 | 148 | 125 | 273 | 130 | 94 | 30 | 20 | 36 | 28 | 184 | 30(6x 24) | 85 |
500 | 500 | 160 | 175 | 450 | 820 | 280 | 250 | 550 | 140 | 160 | 125 | 285 | 140 | 100 | 30 | 20 | 40 | 30 | 232 | 35.5(6x24) | 90 |

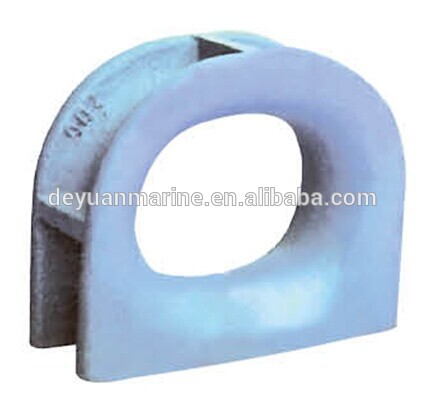

Marine Mooring Closed Chocks with good price
Marine Mooring Closed Chocks with good price
Marine Mooring Closed Chocks with good price
Nominal DIA(mm) | L | L1 | L2 | L3 | L4 | B | H | H1 | H2 | H3 | R | R1 | R2 | R3 | r1 | r2 | T | T1 | Calculated mass(kg) | DIA of applicable rope in reference(mm) | |
DIA of wire rope | DIA of hemp rope | ||||||||||||||||||||
250 | 250 | 92 | 100 | 250 | 434 | 160 | 200 | 372 | 80 | 92 | 100 | 192 | 80 | 56 | 20 | 15 | 24 | 20 | 48 | 20(6×12) | 50 |
300 | 300 | 114 | 110 | 300 | 528 | 200 | 250 | 464 | 100 | 114 | 125 | 239 | 100 | 72 | 25 | 20 | 28 | 22 | 83 | 22.4(6 x12) | 60 |
350 | 350 | 125 | 125 | 350 | 600 | 220 | 250 | 485 | 110 | 125 | 125 | 250 | 110 | 80 | 30 | 20 | 30 | 22 | 103 | 24(6x 24) | 70 |
400 | 400 | 136 | 135 | 370 | 672 | 240 | 250 | 506 | 120 | 136 | 125 | 261 | 120 | 88 | 30 | 20 | 32 | 25 | 136 | 26(6x 24) | 80 |
450 | 450 | 148 | 150 | 400 | 746 | 260 | 250 | 528 | 130 | 148 | 125 | 273 | 130 | 94 | 30 | 20 | 36 | 28 | 184 | 30(6x 24) | 85 |
500 | 500 | 160 | 175 | 450 | 820 | 280 | 250 | 550 | 140 | 160 | 125 | 285 | 140 | 100 | 30 | 20 | 40 | 30 | 232 | 35.5(6x24) | 90 |
