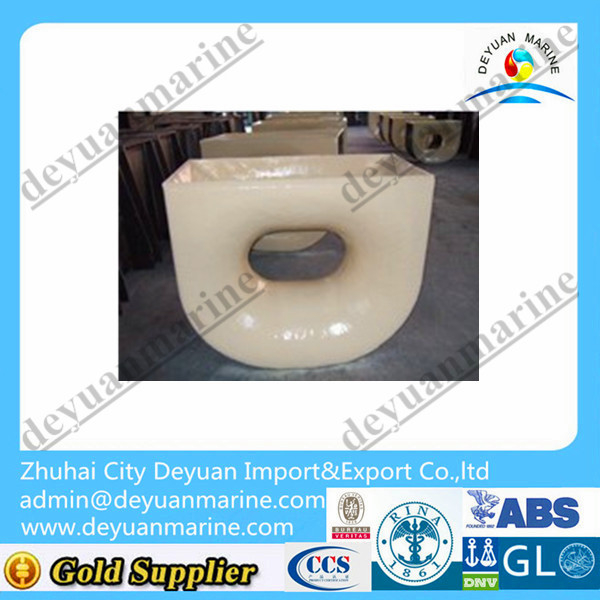

Marine chock type C DIN 81915
- various sizes can be provided.
- produce acc. to customer's drawings.
- with ABS, BV, CCS and other specified certificates.
Marine chock type C DIN 81915

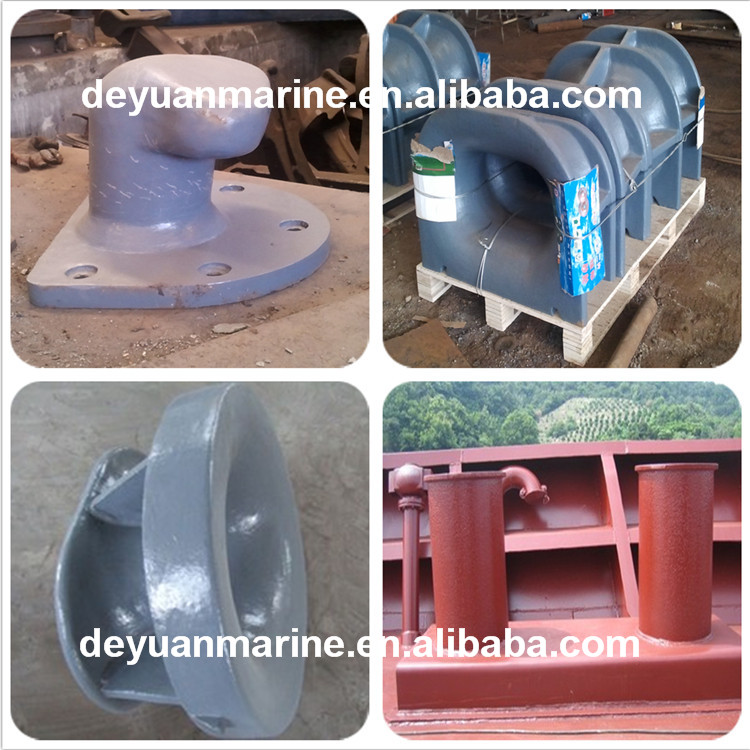

China Deyuan Marine Fitting Co.,ltd are leading supplier of marine equipment.We can provide various types of chocks, including roller chock, double roller chock, bulwark chock, deck mounted chock, closed chock, open chock.
Type | Rope diam(mm) | Wire working Load(kn) | Wire breaking Load(KN) | Weight (kg) | E |
C2 | -16 | 20 | 150 | 29 | 158 |
C3 | -20 | 30 | 220 | 48 | 195 |
C5 | -24 | 50 | 350 | 85 | 240 |
C8 | -32 | 80 | 500 | 136 | 293 |
C12 | -40 | 120 | 800 | 211 | 355 |
C20 | -48 | 200 | 1150 | 325 | 420 |
C32 | -48 | 320 | 1750 | 840 | 450 |
|
