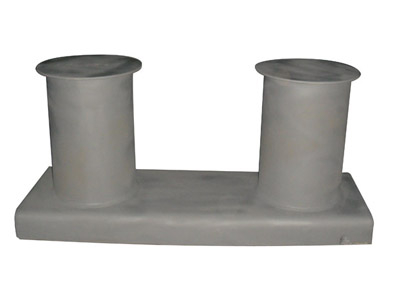

Marine Mooring Double Bitts NS2584

Marine Mooring Double Bitts NS2584 Specifications



Double bittss:
1.Long working life
2.High quality with competitive price.
3.Can be customized.
4.Durable in use



Double bitts:

Marine mooring double bitts NS2584   :

Feature:



1.Long working life

2.High quality with competitive price.

3.Can be customized.



Material: Steel
Finish: Epoxy finishing
Warranty: 2 Years
Certificate: ABS, BV, GL, LR, NK, DNV, CCS

Custom made

Double Bollard NS 2584
Product No.	Nominal Dia.(mm)	Steel pipe	a1	a2	b1	c	d2	e	h	k	l1	l2	t1	Weight(kg)
BDN-001	125	140*10	4	5	20	80	170	165	250	15	315	455	6	25.9
BDN-002	160	168*10	4	5	24	90	200	195	300	15	400	568	6	37.2
BDN-003	200	219*12	5	6	32	100	260	250	400	15	500	719	6	75.2
BDN-004	250	273*16	5	6	40	125	330	315	500	15	630	903	10	124
BDN-005	315	325*20	6	8	48	150	390	375	600	20	800	1124	10	230
BDN-006	400	406*20	8	9	56	175	480	435	700	20	1000	1406	10	356
BDN-007	500	508*25	10	9	72	200	600	515	830	25	1250	1758	12	723
BDN-008	630	610*25	10	9	88	225	720	615	1000	25	1570	2180	16	1084
BDN-009	710	711*28	10	9	96	250	830	675	1100	25	1750	2461	16	1532
