Deyuan Marine

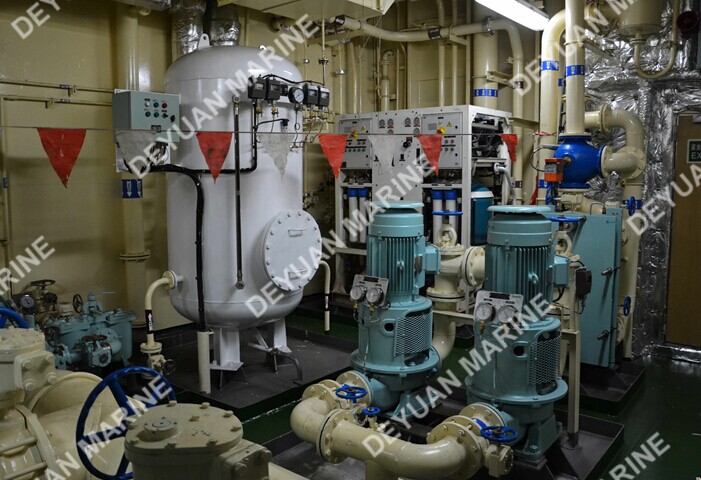

1.5m3 Zdr Series 0.4Mpa Steam Electric Heating Pressure Water Tank with Competitive Price
This steam electric hot water tank is suitable for all kinds of ship which have steam source or
power to produce hot water which is for crewmen.
Type | ZDR Series | |||||
Capacity(M3) | 0.12 | 0.2 | 0.3 | 0.5 | 1.0 | 1.5 |
Working pressure(Mpa) | 0.4 | |||||
Design Pressure(Mpa) | 0.45 | |||||
Test Pressure(Mpa) | 0.3 | |||||
Water inlet Temp.(ºC) | 15 | |||||
Water outlet Temp.(ºC) | 65 | |||||
Steam consumption(kg/h) | 27.5 | 45 | 75 | 120 | 325 | 325 |
Steam hot water capacity(kg/h) | 275 | 450 | 750 | 1200 | 3250 | 3259 |
Steam hot water area(m2) | 0.24 | 0.38 | 0.6 | 1.0 | 2.6 | 3.5 |
Electric heatng water(kg/h) | 90 | 140 | 180 | 280 | 360 | 540 |
Electric heating power(kw) | 6 | 9 | 12 | 18 | 24 | 36 |
DRG Series Electric Heating Hot Water Tank
Application:
The hot water tank is suitable for heating water on the ship or platform,heated fresh water for crew use.
Principle Description:
This series hot water tank can be combined to use with fresh water pressure tank on board,namely
use fresh water to renew the stock of hot water tank,and then heated by electric for usage of entire vessel.
Technical Data:
Type | DRG Series | |||||
Capacity(M3) | 0.12 | 0.2 | 0.3 | 0.5 | 1.0 | |
Working pressure(Mpa) | 0.4 | |||||
Design Pressure(Mpa) | 0.44 | |||||
Test Pressure(Mpa) | 0.66 | |||||
Safety valve open pressure(Mpa) | 0.42 | |||||
Water inlet Temp.(ºC) | 15 | |||||
Water outlet Temp.(ºC) | 65 | |||||
Hot water capacity(kg/h) | 180 | 360 | 540 | 720 | 900 | |
Electric Heating power(KW) | 12 | 24 | 36 | 48 | 60 | |
The laying of the outer surface of insulation layer thickness(mm) | 40 | |||||
Outsourcing galvanized steel sheet thickness(mm) | 0.7 | |||||
Power supply | AC380V,50HZ,3phase or AC440V,60HZ,3phase | |||||
Weight (kg) | 198 | 243 | 299 | 308 | 513 | |
DN | 400 | 500 | 600 | 700 | 900 | |
A | 608 | 708 | 808 | 908 | 1108 | |
B | 688 | 790 | 911 | 824 | 1072 | |
H | 1241 | 1335 | 1417 | 1773 | 2090 | |
d1 | DN25 | DN32 | DN40 | |||
d2 | 3/4″ | 1″ | ||||
b | 393 | 445 | 516 | 469 | 617 | |
h1 | 271 | 266 | 321 | 440 | 533 | |
h2 | 540 | 580 | 630 | / | / | |
C | 320 | 330 | 370 | 490 | 630 |
ZDR Series Steam-Electric Heating HOT Water Tank
This steam-electric hot water tank is suitable for all kinds of ship which have steam source or
power to produce hot water which is for crewmen.
Type | ZDR Series | |||||
Capacity(M3) | 0.12 | 0.2 | 0.3 | 0.5 | 1.0 | 1.5 |
Working pressure(Mpa) | 0.4 | |||||
Design Pressure(Mpa) | 0.45 | |||||
Test Pressure(Mpa) | 0.3 | |||||
Water inlet Temp.(ºC) | 15 | |||||
Water outlet Temp.(ºC) | 65 | |||||
Steam consumption(kg/h) | 27.5 | 45 | 75 | 120 | 325 | 325 |
Steam hot water capacity(kg/h) | 275 | 450 | 750 | 1200 | 3250 | 3259 |
Steam hot water area(m2) | 0.24 | 0.38 | 0.6 | 1.0 | 2.6 | 3.5 |
Electric heatng water(kg/h) | 90 | 140 | 180 | 280 | 360 | 540 |
Electric heating power(kw) | 6 | 9 | 12 | 18 | 24 | 36 |
ZRG Series Steam Heating Hot Water Tank
This series of hot water tank is suitable for fresh water system which is heated by steam.
Type | ZRG Series | ||||
Capacity(M3) | 0.12 | 0.2 | 0.3 | 0.5 | 1.0 |
Working pressure(Mpa) | 0.6 | ||||
Design Pressure(Mpa) | 0.7 | ||||
steam Pressure(Mpa) | 0.3 | ||||
Water inlet Temp.(ºC) | 15 | ||||
Water outlet Temp.(ºC) | 65 | ||||
Steam consumption(kg/h) | 27.5 | 45 | 75 | 120 | 325 |
Heated water capacity(kg/h) | 275 | 450 | 750 | 1200 | 3250 |
Steam hot water area(m2) | 0.24 | 0.38 | 0.6 | 1.0 | 2.6 |
Weight (kg) | 155 | 205 | 222 | 286 | 343 |
YLG Series Pressure Water Tank
Application:The pressure water tank can be used to provide fresh water for living and cleaning of
ship and Drilling platforms. Principle Description:
This device uses pressured water by pump produced by shipyard,to compress the air
inside of tank,in order to maintain the water in cabinet body under a suitable air pressure.
So as to provide fresh water to the crews.
Main technical requirements:
Type | YLG Series |
Volume | 0.12-3.0m3 |
Working pressure | 0.6MPa |
Design pressure | 0.7MPa |
Strength test pressure | 1.05MPa |
Air tightness test pressure | 0.875MPa |
Open pressure of safety valve | 0.63MPa |
Working temperature | 0~45ºC |
Design temperature | 50ºC |
ZYG Series Combination Pressure Water Tank
This series of pressure water tank is suitable for ship fresh water pipes and sea water pipes,pumps;pressure swith,
electric control box and hydrophone are installed together.
It is compact and beautiful appearance.easy to install and maintain,and it is an ideal unit for water supply system.
Main technical requirements:
Model | ZYG Series | ||||||||
0.12 | 0.2 | 0.3 | 0.5 | 1 | 1.5 | 2 | |||
Volume(m3) | 0.12 | 0.2 | 0.3 | 0.5 | 1 | 1.5 | 2 | ||
Working pressure(MPa) | 0.4 | ||||||||
Design pressure (MPa) | 0.44 | ||||||||
Test pressure (MPa) | 0.66 | ||||||||
Take-off pressure of safety valve(MPa) | 0.42 | ||||||||
Working temperature(ºC) | 0~45 | ||||||||
Design temperature(ºC) | 50 | ||||||||
Water pump | Model | 1.5CWX-1.5/1.5A | 1.5CWX-2/2A | 1.5CWX-3/3A | |||||
Flow rate(m3/h) | 3 | 6.5 | 10 | ||||||
Pumping head (m) | 40 | 40 | 40 | ||||||
Power(kW) | 2.2 | 3 | 4 |
