Oil water separator:
1.Certificate: BV,EC,CCS and GL certificate.
2.Reliable quality.
3.Short delivery time
4.Good Service

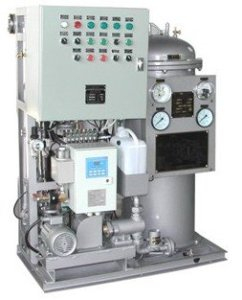

Marine Oil Water Separator :
15PPM automatic Marine oil water separator:
Feature:
1.Certificate: BV,EC,CCS and GL certificate available.
2.Reliable quality.
3.Short delivery time.
It is a kind of environmental protection product designed based on international maritime IMO.MEPC.107(49) standard,the oil content in effluent water equal or less than 15ppm.The resolution made the fully new requirement referring to 15ppm bilge treatment plant in Annex I of MARPOL73/78.
The OWS type oily water separator can effectively dispose all kinds of bilge water including fuel oil, high-density residual oil and emulsion mixture combined with black ferric oxide and surfactant.
This OWS can also be used in industrial and petroleum, besides in ship vessels. The effluent oil content from OWS can meet any standards of Environment Bureau in China.
There are nine types of specifications in OWS series. The smallest type is OWS-0.25 which can be installed on ship less than 1000DWT .The biggest type is OWS-5.00 which can be installed on ship more than 300 thousand DWT. All of type drawings and devices are approved by China Classification Society for type test.The types and specifications are as follows:We can also design and produce the special type of Oily Water Separator according to the demands of our customers.
Principle:
The device adopts the combination of 1st stage, cone plate gravity and coalesce separation; 2nd stage, fiber filter and 3rd stage, membrane permeation in order to make the treated bilge water to reach the requirements of discharge standard of the resolution of IMO MEPC.107 (49).
Type | OWS-0.25 | OWS-0.5 | OWS-1 | OWS-1.5 | OWS-2 | OWS-2.5 | OWS-3 | OWS-4 | OWS-5 | |
Rated capacity(m3/h) | 0.25 | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 4 | 5 | |
Power of the electric heater(kw) | 1kw | 3kw | 6 | 6 | 6 | 6 | 6 | 12 | 12 | |
Power of the electric motor | 0.37kw | 0.55kw | 0.75kw | 1.1kw | 1.1kw | 1.5kw | 1.5kw | 2.2kw | 2.2kw | |
Outline Dimension(LxWxH)(mm) | 1000x6001250 | 1100x690x1460 | 1050x1000x1620 | 1100x1130x1650 | 1900x1120x1700 | 1900x1120x1900 | 1700x1500x1900 | 2280x1700x1900 | 2590x2000x1900 | |
Base | 5# | 6# | 6# | 6# | 8# | 8# | 8# | 10# | 10# | |
Weight | Dry Weight | 400 | 600 | 800 | 1060 | 1260 | 1500 | 1800 | 2100 | 2500 |
Wet Weight | 550 | 900 | 1200 | 1650 | 2260 | 2800 | 3200 | 3900 | 4600 | |
Applicable Vessel | <1000DWT | 1000-5000DWT | 5-10KDWT | 10-30DWT | 30-50DWT | 50-100DWT | 100-200DWT | 100-300DWT | >300DWT | |
Electrical System | AC 380V/50Hz/3φ,AC 415V/50Hz/3φ,AC 440/60Hz/3φ,AC 480V/60HZ/3φ (optional) | |||||||||
Oil content of the discharged water | Equal or less than 15ppm | |||||||||
Suction head | Equal or less than 6m-H2O | |||||||||
Pressure of the discharged water | 5-10m-H2O | |||||||||
OWS-0.25 type Marine oil water separator
OWS-0.5 type Marine bilge water separator
OWS-1.00 type Marine oily water separator
OWS-1.50 type 15ppm oil water separator
OWS-2.00 type Oily ballast water separator
OWS-3.00 type Vessel oil water separator
OWS-4.00 type Oil water separating device
OWS-5.00 type Automatic oil water separator
Oil water separator:
1.Certificate: BV,EC,CCS and GL certificate.
2.Reliable quality.
3.Short delivery time
4.Good Service
Marine Oil Water Separator :
15PPM automatic Marine oil water separator:
Feature:
1.Certificate: BV,EC,CCS and GL certificate available.
2.Reliable quality.
3.Short delivery time.
It is a kind of environmental protection product designed based on international maritime IMO.MEPC.107(49) standard,the oil content in effluent water equal or less than 15ppm.The resolution made the fully new requirement referring to 15ppm bilge treatment plant in Annex I of MARPOL73/78.
The OWS type oily water separator can effectively dispose all kinds of bilge water including fuel oil, high-density residual oil and emulsion mixture combined with black ferric oxide and surfactant.
This OWS can also be used in industrial and petroleum, besides in ship vessels. The effluent oil content from OWS can meet any standards of Environment Bureau in China.
There are nine types of specifications in OWS series. The smallest type is OWS-0.25 which can be installed on ship less than 1000DWT .The biggest type is OWS-5.00 which can be installed on ship more than 300 thousand DWT. All of type drawings and devices are approved by China Classification Society for type test.The types and specifications are as follows:We can also design and produce the special type of Oily Water Separator according to the demands of our customers.
Principle:
The device adopts the combination of 1st stage, cone plate gravity and coalesce separation; 2nd stage, fiber filter and 3rd stage, membrane permeation in order to make the treated bilge water to reach the requirements of discharge standard of the resolution of IMO MEPC.107 (49).
Type | OWS-0.25 | OWS-0.5 | OWS-1 | OWS-1.5 | OWS-2 | OWS-2.5 | OWS-3 | OWS-4 | OWS-5 | |
Rated capacity(m3/h) | 0.25 | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 4 | 5 | |
Power of the electric heater(kw) | 1kw | 3kw | 6 | 6 | 6 | 6 | 6 | 12 | 12 | |
Power of the electric motor | 0.37kw | 0.55kw | 0.75kw | 1.1kw | 1.1kw | 1.5kw | 1.5kw | 2.2kw | 2.2kw | |
Outline Dimension(LxWxH)(mm) | 1000x6001250 | 1100x690x1460 | 1050x1000x1620 | 1100x1130x1650 | 1900x1120x1700 | 1900x1120x1900 | 1700x1500x1900 | 2280x1700x1900 | 2590x2000x1900 | |
Base | 5# | 6# | 6# | 6# | 8# | 8# | 8# | 10# | 10# | |
Weight | Dry Weight | 400 | 600 | 800 | 1060 | 1260 | 1500 | 1800 | 2100 | 2500 |
Wet Weight | 550 | 900 | 1200 | 1650 | 2260 | 2800 | 3200 | 3900 | 4600 | |
Applicable Vessel | <1000DWT | 1000-5000DWT | 5-10KDWT | 10-30DWT | 30-50DWT | 50-100DWT | 100-200DWT | 100-300DWT | >300DWT | |
Electrical System | AC 380V/50Hz/3φ,AC 415V/50Hz/3φ,AC 440/60Hz/3φ,AC 480V/60HZ/3φ (optional) | |||||||||
Oil content of the discharged water | Equal or less than 15ppm | |||||||||
Suction head | Equal or less than 6m-H2O | |||||||||
Pressure of the discharged water | 5-10m-H2O | |||||||||
OWS-0.25 type Marine oil water separator
OWS-0.5 type Marine bilge water separator
OWS-1.00 type Marine oily water separator
OWS-1.50 type 15ppm oil water separator
OWS-2.00 type Oily ballast water separator
OWS-3.00 type Vessel oil water separator
OWS-4.00 type Oil water separating device
OWS-5.00 type Automatic oil water separator
