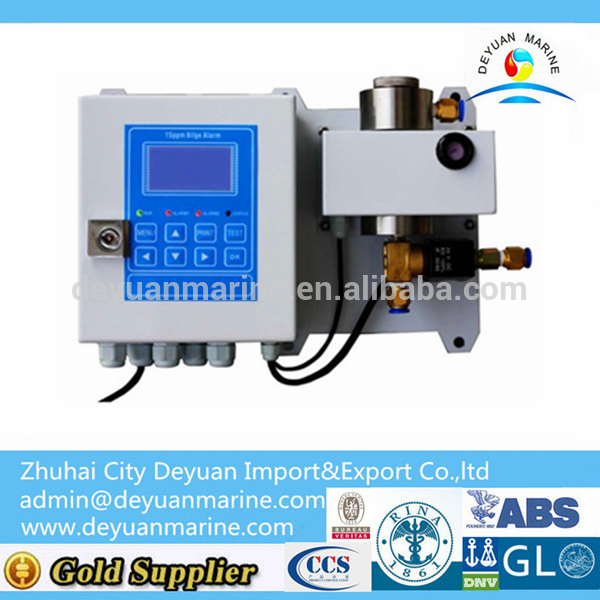

15PPM Oil Content Meter Analyzer 15ppm bilge alarm With CCS Marine Certificate
15PPM Oil Content Meter Analyzer With CCS Marine Certificate
1) Measuring range: 0-30ppm (display range 0-80ppm).
2) Measurement precision: (15ppm alarm) ± 5ppm (meet the IMO standard).
3) Display type : LED digital tube.
4) 15ppm bilge water Alarm Alarm indication: 4 red LED.
5) 2-way alarm relay.
6) Rated capacity of relay contact 250VAC 3A (non-emotional).
7)Model:15ppm bilge alarm.
15ppm Bilge Water Alarm Main performance indicators:
1) Measuring range: 0-30ppm (display range 0-80ppm)
2) Measurement precision: (15ppm alarm) ± 5ppm (meet the IMO standard)
3) Display type : LED digital tube
4) 15ppm bilge water Alarm Alarm indication: 4 red LED
5) 2-way alarm relay
6) Rated capacity of relay contact 250VAC 3A (non-emotional)
7) 15ppm bilge water Alarm Response time ≤ 5 seconds
8) Output signal 4-20mA
9) Environment temperature 0 °C - 55 °C
10) bilge water Alarm Relative humidity≤ 93%
11) Sample liquid temperature 1 - 55 °C
12) Sample liquid pressure 0.1-0.6MPa
13) Sample liquid flow of 0.1-4L / min
14) Protection class IP55
15) Main power supply 220/110VAC 50Hz/60Hz
16) Power Consumption ≤ 20VA
17) Overall dimension 400mm × 300mm × 160mm
18) Meet the standard IMO. Res. MEPC. 107 (49) resolution
China Deyuan Marine Fitting Co.ltd is a professional supplier of marine equipment,such as 15ppm bilge separator,15ppm oily water separator,15ppm bilge alarm,oil content meter,marine sewage treatment plant etc.Pls contact us for more details if you are interested.
15PPM Oil Content Meter Analyzer 15ppm bilge alarm With CCS Marine Certificate
15PPM Oil Content Meter Analyzer With CCS Marine Certificate
1) Measuring range: 0-30ppm (display range 0-80ppm).
2) Measurement precision: (15ppm alarm) ± 5ppm (meet the IMO standard).
3) Display type : LED digital tube.
4) 15ppm bilge water Alarm Alarm indication: 4 red LED.
5) 2-way alarm relay.
6) Rated capacity of relay contact 250VAC 3A (non-emotional).
7)Model:15ppm bilge alarm.
15ppm Bilge Water Alarm Main performance indicators:
1) Measuring range: 0-30ppm (display range 0-80ppm)
2) Measurement precision: (15ppm alarm) ± 5ppm (meet the IMO standard)
3) Display type : LED digital tube
4) 15ppm bilge water Alarm Alarm indication: 4 red LED
5) 2-way alarm relay
6) Rated capacity of relay contact 250VAC 3A (non-emotional)
7) 15ppm bilge water Alarm Response time ≤ 5 seconds
8) Output signal 4-20mA
9) Environment temperature 0 °C - 55 °C
10) bilge water Alarm Relative humidity≤ 93%
11) Sample liquid temperature 1 - 55 °C
12) Sample liquid pressure 0.1-0.6MPa
13) Sample liquid flow of 0.1-4L / min
14) Protection class IP55
15) Main power supply 220/110VAC 50Hz/60Hz
16) Power Consumption ≤ 20VA
17) Overall dimension 400mm × 300mm × 160mm
18) Meet the standard IMO. Res. MEPC. 107 (49) resolution
China Deyuan Marine Fitting Co.ltd is a professional supplier of marine equipment,such as 15ppm bilge separator,15ppm oily water separator,15ppm bilge alarm,oil content meter,marine sewage treatment plant etc.Pls contact us for more details if you are interested.
