30KN Small Hydraulic Crane Hydraulic Slewing Crane & Rescue Boat Liferaft Launching Device Telescopic Crane

30KN Small Hydraulic Crane Hydraulic Slewing Crane & Rescue Boat Liferaft Launching Device Telescopic Crane



30KN Small Hydraulic Crane Hydraulic Slewing Crane & Rescue Boat Liferaft Launching Device Telescopic Crane

1.Hydraulic slewing crane &rescue boat liferaft landing device .

2.Working load:21~23KN .

3.Hoisting speed:≥18m/min.

4.Landing speed:40-60m/min.

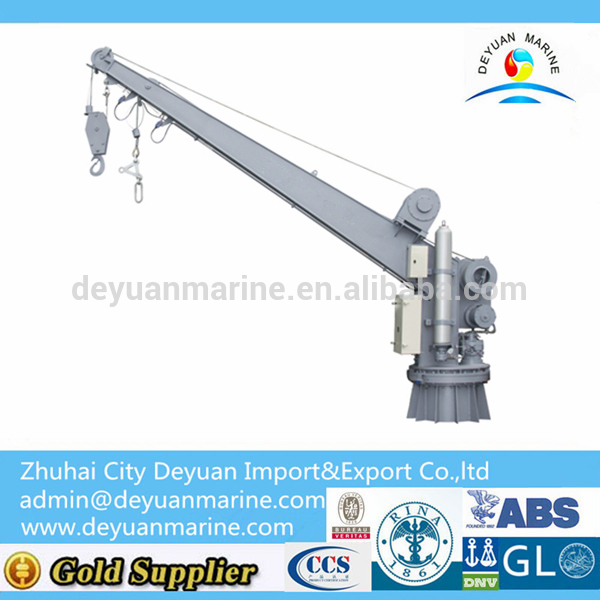

30KN Hydraulic Slewing Crane & Rescue Boat Liferaft Launching Device Telescopic Crane

This equipment uses hydraulic drive rotary type,by its own gravity of the boat to make it down to the water,which could make the boat slew to outboard in case of losing of the power supply.While lowering,the sailors in the boat could pull the remote ontrol steel rope,through the pulley around the reel.To lift the winch hammer to control the boat/raft lowering or stop.This also could be operated by sailors on the operation deck.The winch is use of motor-driven winch gear box and gear box with centrifugal speed and manual brake function delegated.The device is designed and manufacturing according to the latest SOLAS standards and international standards.



Type	Max.Working load	Hoisting load	Hoisting speed	Landing speed	Rope capacity of the reel	Max rotation radius
HD2-10	21KN	14KN	≥18m/min	40-60m/min	30m	4500mm
HD3-10	30KN	27KN				4500mm
HD3-10-1	23KN	14KN				7000mm
HD3-10-2	23KN	18KN				7000mm



Crane main technical data
Max.hoisting load	Rope capacity of the reel	Maximum rotation angle	Landing speed	Rotation radius
2T	30M	≤330°	≥15m/min	10000MM
3T
3T
3T
