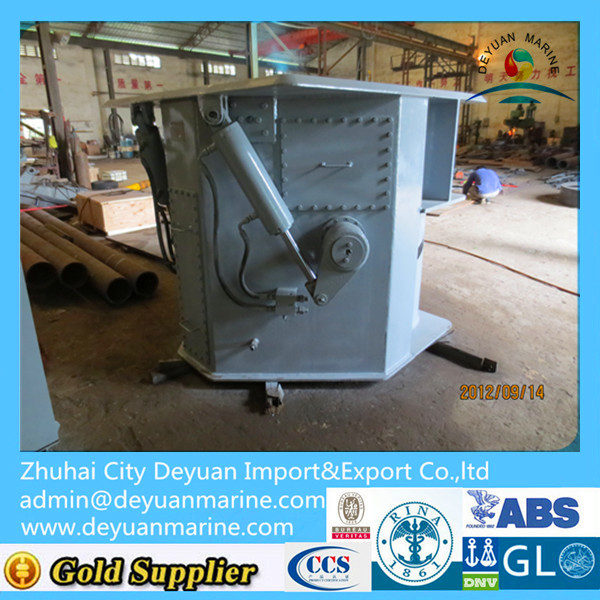

400T Marine High Quality Shark Jaw/Towing Pin with ABS certificate
1.Product:400T shark jaw/Towing pin
2. Shark Jaw SWL:400Ton
3.Shark Jaw/towing pin bollard pull:120T
4. Shark Jaw/towing pin holding capacity:400T
5. Shark Jaw/towing pin power:30KW
*We builds a full range of shark Jaws for anchor handling tug supply vessels.
Standard ratings are 100,200,300,400,500 and
700 Metric Tons and all units perform quick release at the rated Load.
*we customize our equipment to suit the operating characteristics of your vessels.
Third party certificate, load tests ,release tests
and load monitoring systems are available options.
*Intended for us with both chain and wire rope.
Replaceable jaw inserts are available for different chain sizes.
*When the jaws are retracted they are flush with the deck in their
own watertight frame with drain fittings.

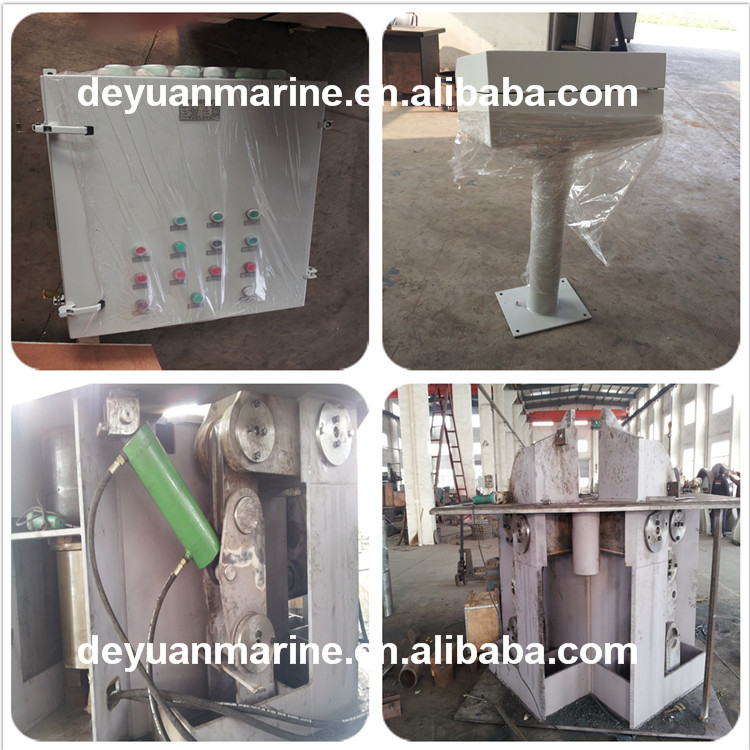

*All operations are remotely controlled from a control panel located
in the pilot house and/or locally. Controls take advantage of
PLC based technology allowing for easier installation with less electrical wiring.

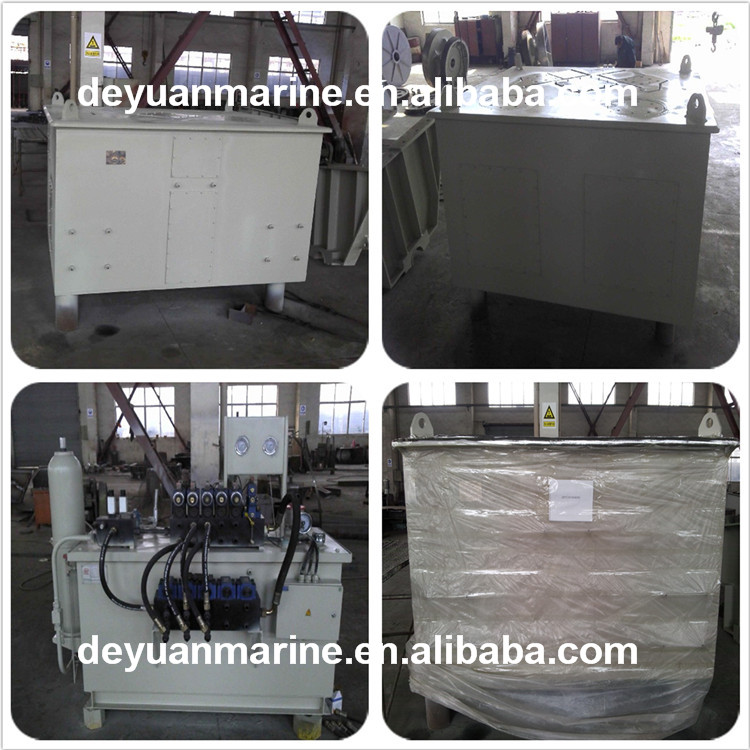

A dedicated hydraulic power unit is provided with each unit.
Shark Jaws/towing pin Model:
Shark Jaw Model | Towing pin model | Bollard pull (ton) | Holding capacity (ton) | Power reqired (kw) |
SJ-100 | TP-100 | 40 | 100 | 15 |
SJ-200 | TP-200 | 60 | 200 | 22 |
SJ-300 | TP-300 | 85 | 300 | 22 |
SJ-400 | TP-400 | 120 | 400 | 30 |
SJ-500 | TP-500 | 150 | 500 | 30 |
SJ-700 | TP-700 | 200 | 700 | 37 |
