1.Product:shark jaw
2.capacity:100 to 700 tonnes SWL
3.Electro-hydraulic(variable, fixed, multi speed, hazardous environments)
4.-Inline vertical type Towing Pin
5.—Angular close top type Towing Pin
6.--Combine Modular type towing Pin& shark Jaw .

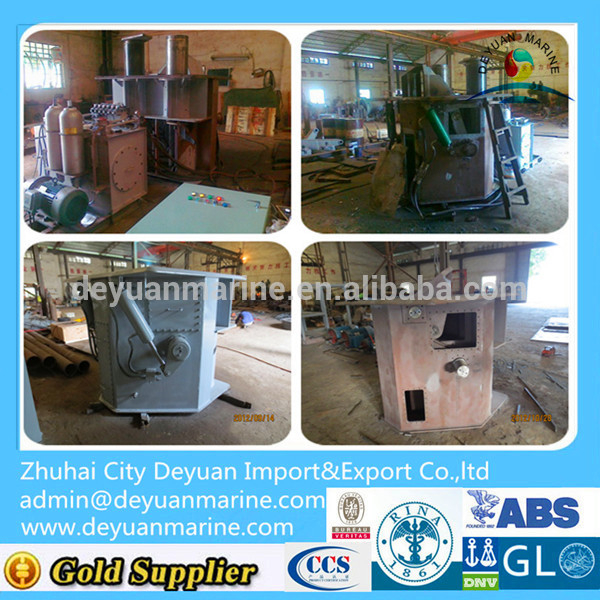

Shark Jaws/towing pin
capacity:100 to 700 Tonnes SWL
system features
Electro-hydraulic(variable, fixed, multi speed, hazardous environments)
-Inline vertical type Towing Pin
—Angular close top type Towing Pin
--Combine Modular type towing Pin& shark Jaw
*We builds a full range of shark Jaws for anchor handling tug supply vessels. Standard ratings
Are 100,200,300,400,500 and 700 Metric Tons and all units perform quick release at the rated
Load.
*we customize our equipment to suit the operating characteristics of your vessels.
Third party certificate, load tests ,release tests and load monitoring systems are available options.
*Intended for us with both chain and wire rope. Replaceable jaw inserts are available for different chain sizes.
*When the jaws are retracted they are flush with the deck in their own watertight frame with drain fittings.
*All operations are remotely controlled from a control panel located in the pilot house and/or locally.
Controls take advantage of PLC based technology allowing for easier installation with less electrical wiring.
A dedicated hydraulic power unit is provided with each unit.
Shark Jaw Model | Towing pin model | Bollard pull (ton) | Holding capacity (ton) | Power reqired (kw) |
SJ-100 | TP-100 | 40 | 100 | 15 |
SJ-200 | TP-200 | 60 | 200 | 22 |
SJ-300 | TP-300 | 85 | 300 | 22 |
SJ-400 | TP-400 | 120 | 400 | 30 |
SJ-500 | TP-500 | 150 | 500 | 30 |
SJ-700 | TP-700 | 200 | 700 | 37 |
