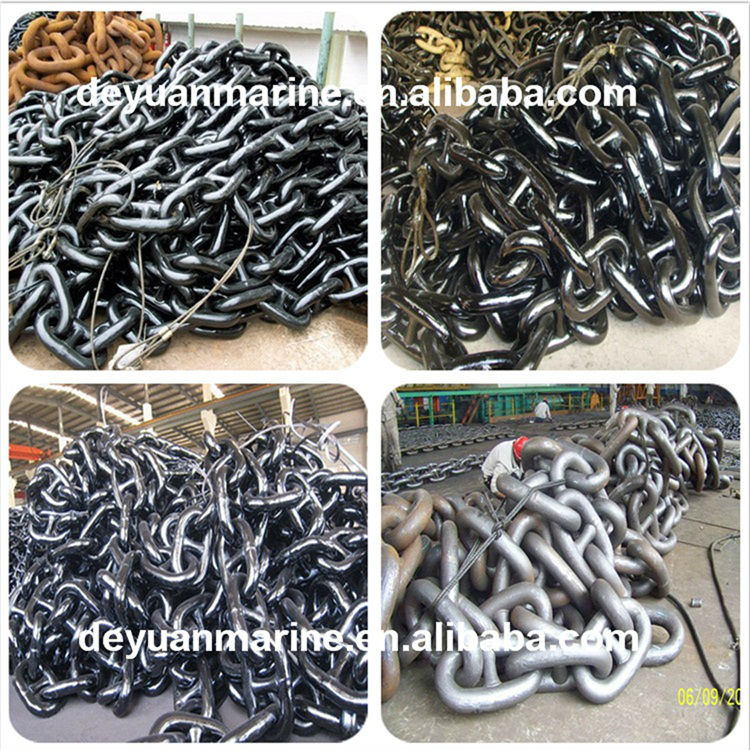

Anchor Chain For Ship
Studless anchor chain
1.Material:U1,U2,U3.
2.Size:22mm~71mm.
3.Certificate:CCS,ABS,LR,BV,NK,RINA,KR.
4.Surface:bituminous paint.
Dia. | Outside Length | Outside Width | U2 | U3 | Weight | ||||
|
|
| Proof Load | Breaking Load | Proof Load | Breaking Load |
| ||
16 | 96 | 56 | 66.2 | 132.3 | 92.42 | 184.83 | 138.14 | ||
17.5 | 105 | 61.25 | 78.89 | 157.78 | 110.55 | 221.1 | 165.8 | ||
19 | 114 | 66.5 | 93.6 | 187.2 | 130.32 | 260.64 | 194.9 | ||
20.5 | 123 | 71.8 | 108.64 | 217.27 | 151.7 | 303.42 | 227.13 | ||
22 | 132 | 77 | 125.4 | 250.9 | 174.4 | 349.4 | 262.29 | ||
24 | 144 | 84 | 149.9 | 298.9 | 207.9 | 415.8 | 312.26 | ||
26 | 156 | 91 | 175.4 | 350.8 | 244 | 488 | 366.76 | ||
28 | 168 | 98 | 203.8 | 406.7 | 283 | 566 | 423.36 | ||
30 | 180 | 105 | 234.2 | 467.5 | 324.9 | 649.8 | 486.85 | ||
