DEYUAN MARINE
Cruise Ship Evacuation System
Evacuation System
600person
120person
CCS,EC.
Standard Export Packing
15~30Days
Double Chute Vertical Passage Marine Evacuation System
Double Chute Vertical Passage Marine Evacuation System

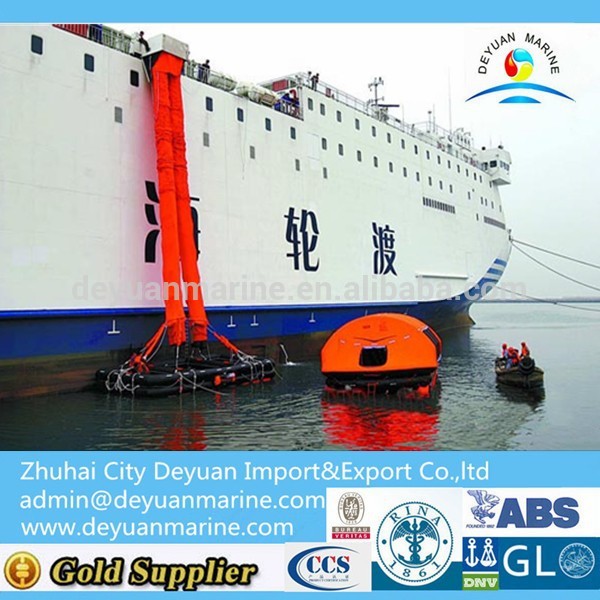

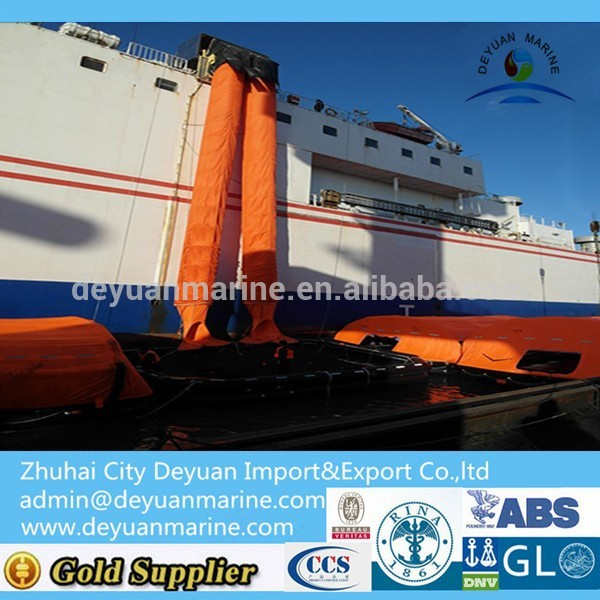

Marine evacuation system (MES) is a very unique evacuation arrangement which allows the people on ships to get into the positioned carling floats during time of emergencies. The most important advantage of having a marine evacuation system on a ship is that the people can get into the floats without getting soaked in the water or facing any danger and can save precious time which could make the entire difference between life and death.
The working of the marine evacuation system can be explained as follows:

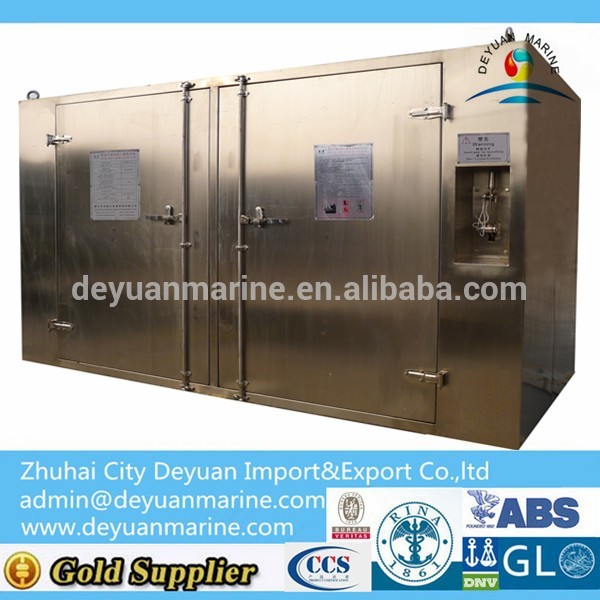

1.The inflatable slide-way through which the passengers are supposed to reach the inflatable platform on the surface of the water is stored in a cabin that is compact and designed specifically to store the MES
2.The compact cabin is situated on the main deck of the ship – either externally or internally
3.The inflatable devices can be activated during an emergency, by pulling on a hand-grip

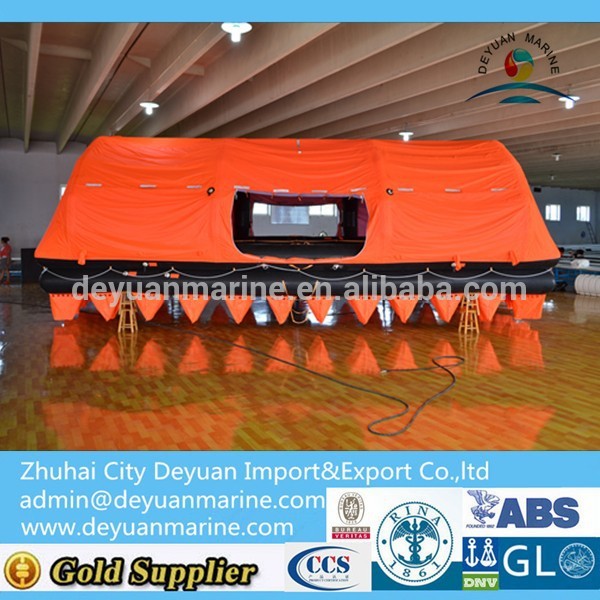

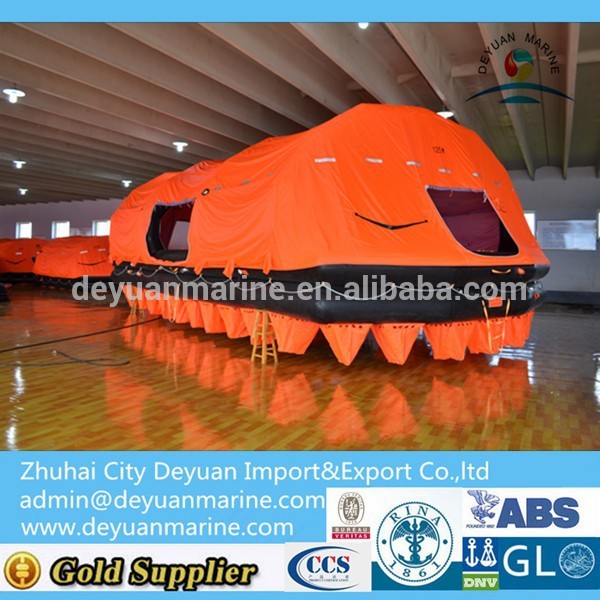

4.The compact cabin that is used to store the MES also acts as an entrance point for the passengers to get into the slide-way and subsequently into the floating platform. From the platforms, they are then moved into the appropriate carling floats.
APPROVALS:
Approved in accordance with EU Directive of Marine Equipment 96/98/EC, IMO Res. A689(17) and SOLAS 74 as amended by IMO resolutions MSC 48(66) and MSC 81(70).
Model | Maximum Stowage height | Maximum assigned | Capacity on the platform | Weight | Dimension of container |
MES-VP10.0-600 | 10 | 600 | 120 | 1900 | 3300×1500×2200 |
MES-VP11.0-600 | 11 | 1920 | |||
MES-VP12.0-600 | 12 | 1940 | |||
MES-VP13.0-600 | 13 | 1960 | |||
MES-VP14.0-600 | 14 | 1980 | |||
MES-VP15.0-600 | 15 | 2000 | |||
MES-VP16.0-600 | 16 | 2020 | |||
MES-VP17.0-600 | 17 | 2040 | |||
MES-VP18.0-600 | 18 | 2060 | |||
MES-VP19.0-600 | 19 | 2080 | |||
MES-VP20.0-600 | 20 | 2100 | |||
MES-VP21.0-600 | 21 | 2120 | |||
MES-VP22.0-600 | 22 | 2140 |
Zhuhai City Deyuan Import & Export Co., Ltd
Contact: Alice
E-mail: admin[at]deyuanmarine[dot]com
Skype: deyuanmarine
Tel: + 86 - 756 - 6302052
Fax: + 86 - 756 - 8305812
Mobile: +86 - 18202396900
Web: http://www.deyuanmarine.com
