Marine Escape System
Marine Escape System
CCS,EC.
315Person
63Person
Standard Export Packing
15~30Days
Inclined Single Chute Passage Marine Evacuation System
Inclined Single Chute Passage Marine Evacuation System
Progressive operators are increasingly seeing MES as the preferred life saving appliance (LSA) solution. With its tried and tested technology in place for over 30 years, it is a recognised system for enhancing ships’ emergency procedures and improvements in evacuation capabilities.

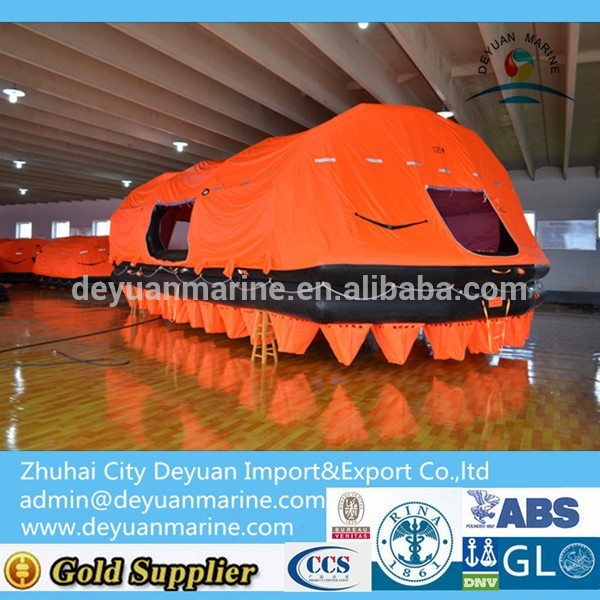

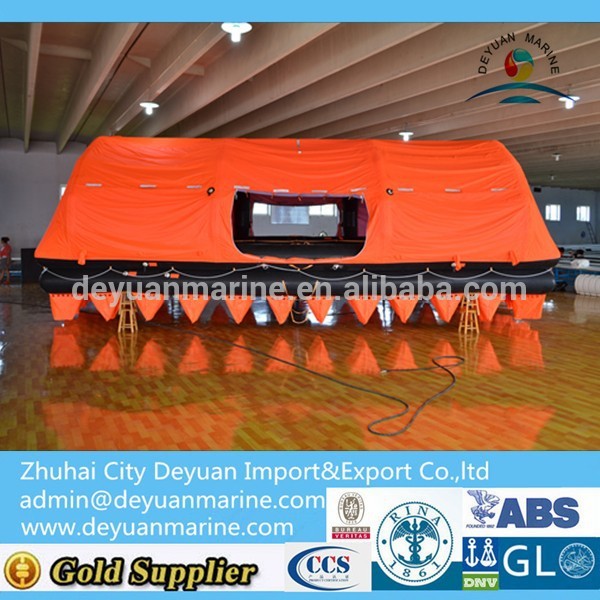

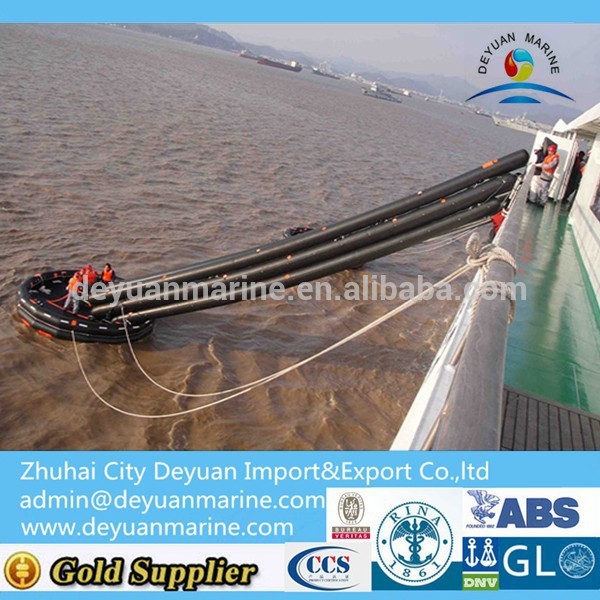

MES is a system that provides mass evacuation via inflatable liferafts & vertical chute technology that is automatically deployed and inflated. DEYUAN MARINE provides enclosed evacuation chutes and four connected fully reversible liferafts with a compact launching and stowage arrangement. These units are more compact than lifeboats and have been shown to be rapid, safe and effective in deployment. Rigorous testing, including full sea trials in Beaufort Sea State 6 winds and 3m wave heights, have endorsed the MES safety features.
APPROVALS:
Approved in accordance with EU Directive of Marine Equipment 96/98/EC, IMO Res. A689(17) and SOLAS 74 as amended by IMO resolutions MSC 48(66) and MSC 81(70).
Model | Maximum Stowage height | Maximum assigned | Capacity on the platform | Weight | Dimension of container |
MES-D6.0-315 | 6 | 315 | 63 | 1280 | 2000×1050×1800 |
MES-D7.0-315 | 7 | 1380 | 2000×1050×1800 | ||
MES-D8.0-315 | 8 | 1460 | 2000×1100×1800 | ||
MES-D9.0-315 | 9 | 1680 | 2200×1150×1850 | ||
MES-D10.0-315 | 10 | 1800 | 2200×1150×1900 | ||
MES-D11.0-315 | 11 | 1860 | 2240×1200×2000 | ||
MES-D12.0-315 | 12 | 1900 | 2300×1200×2 |
Zhuhai City Deyuan Import & Export Co., Ltd
Contact: Tina Zhu
E-mail: sales5[at]deyuanmarine[dot]com
Skype: marinesales5
Tel: + 86 - 756 - 6302052
Fax: + 86 - 756 - 8305812
Mobile: + 86 - 13286053269
Web: http://www.deyuanmarine.com
