DIN Standard Marine German Standard German Type Chock

Availability:
  • DEYUAN

Specifications



Germany standard chock:
1.Strict quality control.
2.Can issue BV,CCS,DNV,LR,KR,ABS,RINA certificate
3.Material: ZG200-400



Germany standard chock:

DIN standard Marine german standard german type chock  :

Feature:

1.Strict quality control.
2.Can issue BV,CCS,DNV,LR,KR,ABS,RINA certificate
3.Material: ZG200-400,ZG230-450.
4.Paint: Grey Epoxy Primer or Black Bitumen Paint, also can do comply with your requirement for the thickness.

5. Packing: Steel Pallet

6.surface in contact with the rope in use been finished smoothly.

We designs and manufactures panama chocks in a wide variety of sizes and styles.

Our panama chocks and other deck fittings are used by military and industrial ships, operating effectively throughout the world.

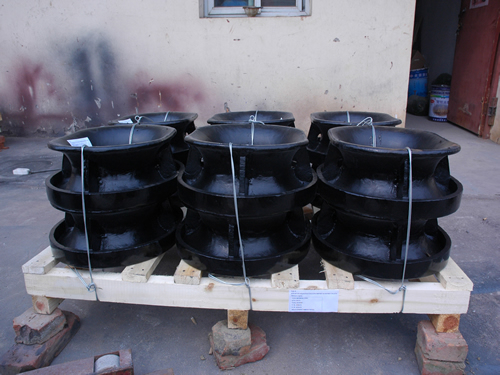

Photo:

Drawing:

Size Chart:

Deck mounted Panama chock JIS F2017-1982 type AC

Product No.

Dimensions(mm)

Mass(kgs)

A

B

C

D

E

PAC-001

310

708

639

541

652

253

PAC-002

360

760

640

542

704

289

PAC-003

400

804

642

545

750

323

PAC-004

450

856

643

547

802

351

PAC-005

500

908

644

549

854

395

If you need detailed drawing,please feel free to contact me.



Also we can supply other kinds of Chocks as below.



Deck mounted Panama chock JIS F2017-1982 type AC



Bulwark mounted Panama Chock JIS F2017-1982 Type BC



Deck Mounted Closed Chock JIS F2005-1975



Bulwark mounted mooring chock JIS F 2007-1976 type A



Bulwark Mounted Chock DIN81915-1998 Type A



Bulwark Mounted Chock DIN81915-1998 Type B



Deck mounted Chock DIN81915-1998 type C



Deck mounted Chock DIN81915-1998 type D



Deck mounted Chock DIN81915-1998 type E



Deck Mounted Chock EU Type



Bulwark Mounted Chock EU Type



Single Point Mooring Pipe JIS F 2030-1978 type A



Single Point Mooring Pipe JIS F 2030-1978 type B



Deck mounted chock type A NS2587



Deck mounted chock type B NS2587



Deck mounted chock type A NS2588



Deck mounted chock type B NS2588



Deck mounted chock type A NS2589



Deck mounted chock type B NS2589



Deck mounted chock type A NS2590



Deck mounted chock type B NS2590



Mooring chock CB34 -76 TYPE A



Mooring chock CB34 -76 TYPE C



Open chock JISF 2006 TYPE FC
