Electric Mooring Rope Capstan Dy1501
- various sizes can be provided.
- produce acc. to customer's drawings.
- with ABS, BV, CCS ,DNV,RINA,KR,LR certificates.

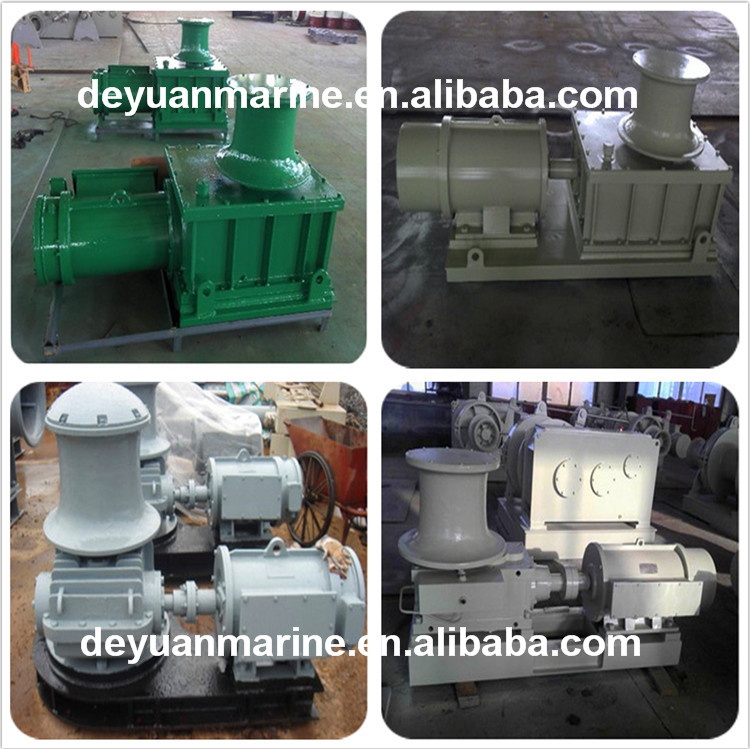

Electric mooring rope capstan
We,China Deyuan marine fitting Co.,ltd ,can provide different types of electric warping
hawser capstan and electric or hydraulic mooring capstan.Pls feel free to contact us for more details.
| Size | Mooring load (KN) | Moorin speed (mm) | Wire rope dia. (mm) | Motor power (KW) | |
| electric | hydraulic | ||||
| 5KN | 5 | ≥18 | Φ11 | 3/1.2 | 5.5 |
| 10KN | 10 | ≥18 | Φ11 | 4.3/1.7 | 7.5 |
| 15KN | 15 | ≥18 | Φ13 | 8.5/3.5 | 11 |
| 20KN | 20 | ≥18 | Φ15 | 11/11/7.5 | 1.5 |
| 30KN | 30 | ≥18 | Φ17.5 | 16/16/11 | 18.5 |
| 50KN | 50 | ≥18 | Φ20.5 | 16 | 30 |
| 70KN | 70 | ≥15 | Φ26 | 22 | 45 |
| 100KN | 100 | ≥15 | Φ28 | 45/45/30 | 55 |
| 120KN | 120 | ≥15 | Φ32.5 | 60/60/45 | 75 |
| 150KN | 150 | ≥15 | Φ36.5 | 60/60/45 | 90 |
| 200KN | 200 | ≥15 | Φ40 | 75/75/36 | 110 |
| 250KN | 250 | ≥12 | Φ46 | 75/75/36 | 110 |
