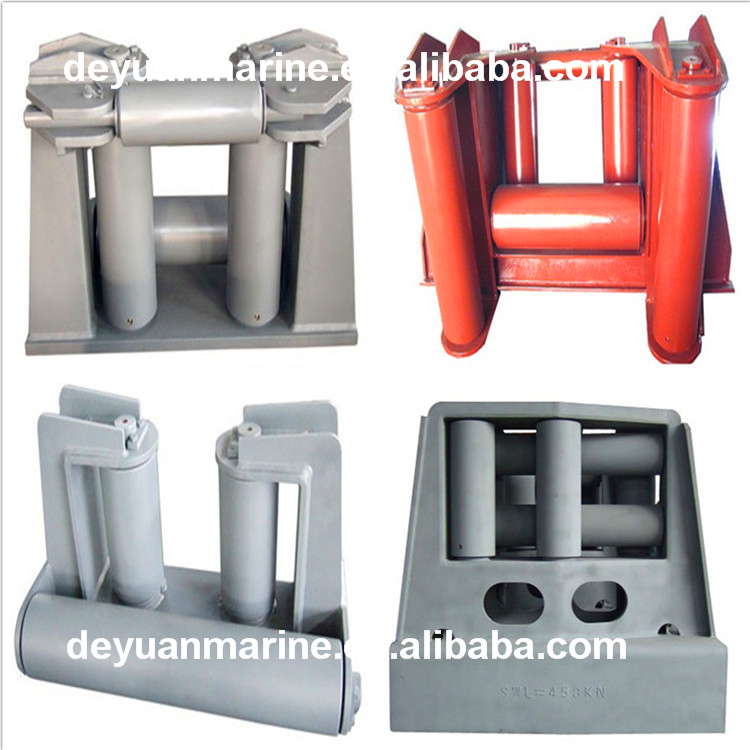

Fairlead Roller JIS F-2015
Fairlead roller JIS F-2014
1.Material:Cast iron.
2.Finish:Epoxy finishing.
3.Certificate:ABS,BV,GL,LR,DNV,NK,CCS.
Fairlead roller JIS F-2014
Nominal size(mm) | A | D1 | D2 | H | S | Weight(kg) | Breaking load(mp) |
150 | 5 | 240 | 150 | 154 | 15 | 25 | 15.5 |
200 | 5 | 310 | 200 | 186 | 15 | 50 | 19.5 |
250 | 6 | 380 | 250 | 230 | 18 | 92 | 28 |
300 | 7 | 440 | 300 | 255 | 18 | 127 | 33 |
350 | 7 | 500 | 350 | 271 | 18 | 169 | 44 |
400 | 7 | 560 | 400 | 307 | 15 | 253 | 57 |
450 | 7 | 360 | 450 | 316 | 15 | 310 | 63 |
Fairlead Roller JIS F-2015
Fairlead roller JIS F-2014
1.Material:Cast iron.
2.Finish:Epoxy finishing.
3.Certificate:ABS,BV,GL,LR,DNV,NK,CCS.
Fairlead roller JIS F-2014
Nominal size(mm) | A | D1 | D2 | H | S | Weight(kg) | Breaking load(mp) |
150 | 5 | 240 | 150 | 154 | 15 | 25 | 15.5 |
200 | 5 | 310 | 200 | 186 | 15 | 50 | 19.5 |
250 | 6 | 380 | 250 | 230 | 18 | 92 | 28 |
300 | 7 | 440 | 300 | 255 | 18 | 127 | 33 |
350 | 7 | 500 | 350 | 271 | 18 | 169 | 44 |
400 | 7 | 560 | 400 | 307 | 15 | 253 | 57 |
450 | 7 | 360 | 450 | 316 | 15 | 310 | 63 |
