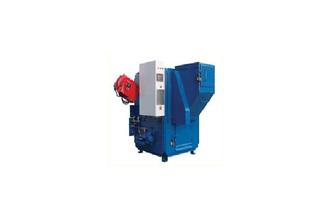

GS500C Marine incinerator

  • DEYUAN

  • China (Mainland)

  • DEYUAN

  • GS500C

  • Ship pollution prevention

  • 930kw

  • Carbon Steel

  • wooden box

  • 30days


Product Description

OG(S)series incinerators are world leading product, This product is designed to be used in both land and ships to incinerate waste oil and bilge water and sewage and the garbage. Such as: sludge oil, plastics, paper, cardboard, wood, rubber, cloth, oily rags, food waste and hospital waste. It is the main pollution control equipment for offshore platform, ships and vessels, also the waste burning equipment on land.

Comparing with the other similar incinerator, this type of incinerator has good features of big burning capacity, less space occupied and reliable function. While burning wastes, the flue gas coming out of this incinerator without color, smoke, smell, only with less dust, and no poisionous,

So it will not cause the second pollution. The structure of this equipment is designed to be dismountable. Easier for installation and maintenance.

Technical Data



1.Heat Capacity:                    730.000/800.000 kCal/h(850/930kw)

2.Incinerator Capacity:

a. Solid waste feeding:         (continue feeding)135kg/h

b.   Waste oil:                          95L/h105L/h (IMO sludge)

(Liquid waste containing max. water less than50%)

3.Diesel consumption:         16-43L/h

4.Power consumption:          24-32kw

5.Dimensions & Weight:

a.GS500C/GS500C SW:       2457(L)*1902(W)*2117(H) (mm)  4545kg/4500Kg

b.GS00C IS:                             2457(L)*1902(W)*1994(H)(mm)  4611Kg

c.GS500C IC:                           2457(L)*1902(W)*2117(H)(mm)  4545Kg

Flue gas fan & Weight:          DN400   563kg

Flue gas damper & Weight: DN400    76kg
