China (Mainland)
DEYUAN AMRINE
DYFWG
Marine Sewage Treatment Plant
10~250person.
Compact design for easy installation.
high quality titanic plate,316LSS&Al-Bronze for other component.
AC380V, 50HZ, 3/AC 440, 60Hz, 3
IMO MEPC159(55),MARPOL 73/78.
CCS,EC,BV,ABS.
ships &vessels.
Wooden case
5 Days after payment

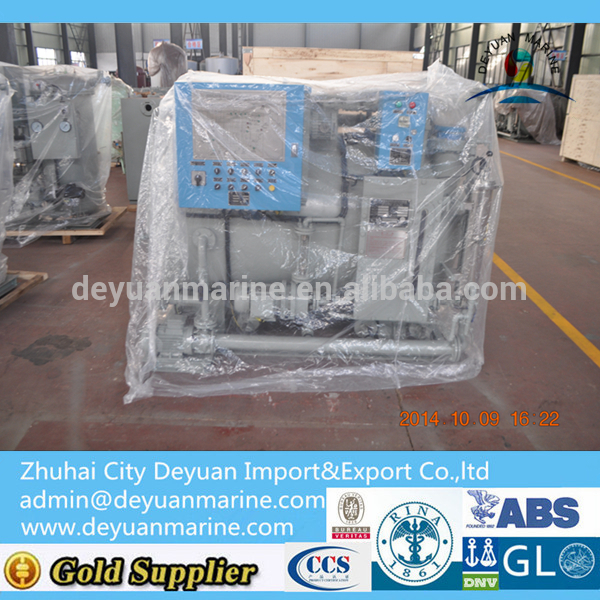

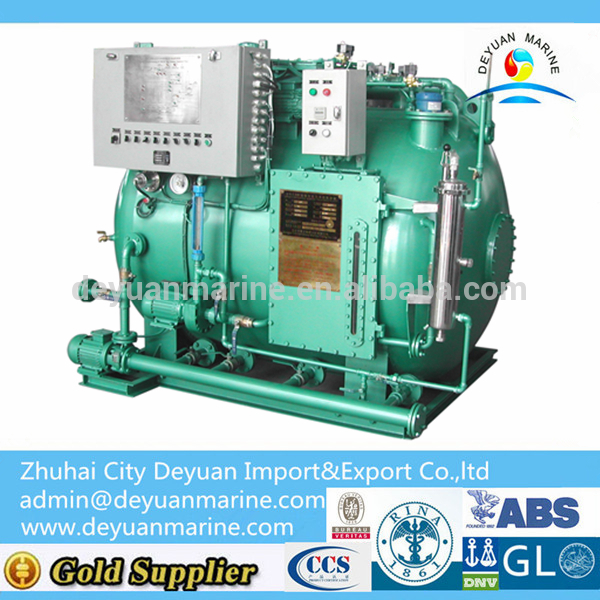

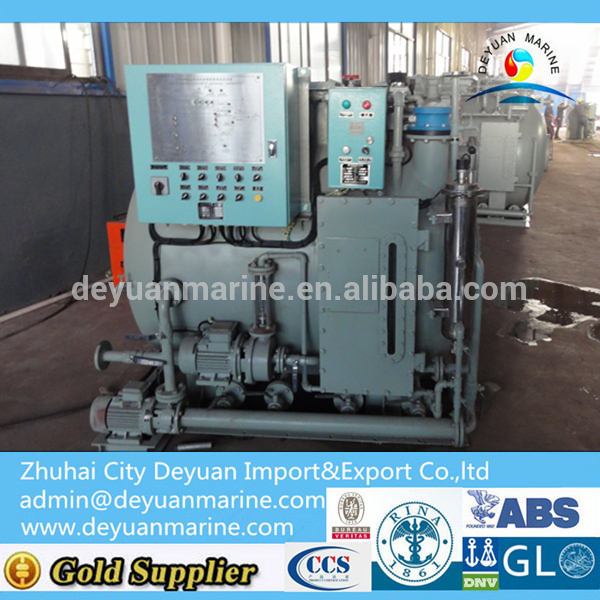

High quality SWCM-400 Marine Sewage Treatment Plant / Wastewater Treatment System
High quality Marine Sewage Treatment Plant for Wastewater Treatment Plant
1.Capacity:10~250person.
2.Standard: IMO MEPC159(55),MARPOL 73/78.
3.Certificate : CCS,EC,BV,ABS.
4.Usage: ships &vessels.
Marine Sewage Treatment Plant
China Deyuan Marine Fitting Co.ltd is a professional supplier of marine equipment,such as 15ppm bilge separator,15ppm oily water separator,15ppm bilge alarm,oil content meter,marine sewage treatment plant etc.Pls contact us for more details if you are interested.
Main Technical Table
Model | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 80 | 100 | 150 | 200 | 250 | |||
Load | Average load L/d | 1190 | 1540 | 1890 | 2310 | 3080 | 3780 | 4480 | 6020 | 7700 | 11200 | 14700 | 18200 | ||
Peak load L/h | 149 | 193 | 237 | 289 | 385 | 473 | 560 | 753 | 963 | 1400 | 1838 | 2275 | |||
Organic load kgBOD5/d | 0.595 | 0.77 | 0.945 | 1.155 | 1.54 | 1.89 | 2.24 | 3.01 | 3.85 | 5.6 | 7.35 | 9.10 | |||
Rated capacity(P) | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 80 | 100 | 150 | 200 | 250 | |||
Max capacity(P) | 17 | 22 | 27 | 33 | 44 | 54 | 64 | 86 | 110 | 160 | 210 | 260 | |||
Electricity | AC380V, 50HZ, 3φ/AC 440, 60Hz, 3φ | ||||||||||||||
Power(KW) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 2.0 | 2.0 | 2.5 | 2.5 | 3.0 |
| ||||
External dimensions L*W*H(mm) | 1550× 1400× 1600 | 1650× 1400× 1600 | 1850× 1500× 1635 | 1950× 1500× 1635 | 1800× 1700× 1900 | 1900× 1700 1950 | 2100× 1700× 2000 | 2500× 1900× 2150 | 2500× 1900× 2300 | 3150× 2400× 2300 |
| ||||
Weight
| Dry weight (Kg)
| 1150 | 1200 | 1250 | 1350 | 1500 | 1750 | 1950 | 2150 | 2900 | 3800 |
| |||
Wet weight (Kg)
| 2600 | 2933 | 3210 | 3928 | 4689 | 5665 | 6486 | 8100 | 10400 | 14680 |
| ||||
Discharge standard | TSS35mg/L, BOD525mg/L, COD125mg/L, Coli form100pcs/100ml, PH:68.5 |
Contact: Anna Wong
China Deyuan Marine Fitting Co., Ltd.
Subsidiary: Zhuhai City Deyuan Import & Export Co., Ltd.
Tel: +86-756-6302052
Fax: +86-756-8305812
MP: +86-13798955790
WhatsApp: +86-13798955790
Skype: sales11[at]deyuanmarine.com
Email: sales11[at]deyuanmarine.com
http://www.deyuanmarine.com
