Spring towing hook:
1. Durable, long lifetime.
2. Warranty period: 12 Months.
3. Excellent quality and fair price
4.hydraul
Spring towing hook:
Hydraulic release spring towing hook :
1. Durable, long lifetime.
2. Warranty period: 12 Months.
3. Excellent quality and fair price
Description:
SWL: 16kN, 25kN, 40kN, 63kN, 100kN, 160kN, 220kN,320kN
Test load : 32kN, 50kN, 80kN, 126kN, 200kN, 320kN, 440kN,640kN
Release load: 16kN, 25kN, 40kN, 63kN, 100kN, 160kN, 220kN,320kN.
Movement: Side movement
Material of hook:EH36
Material of protect panel:Q345B
Material of bolt:35CrMo
Material of Spring:60SiMn
Material of Roller:Q345
Picture:

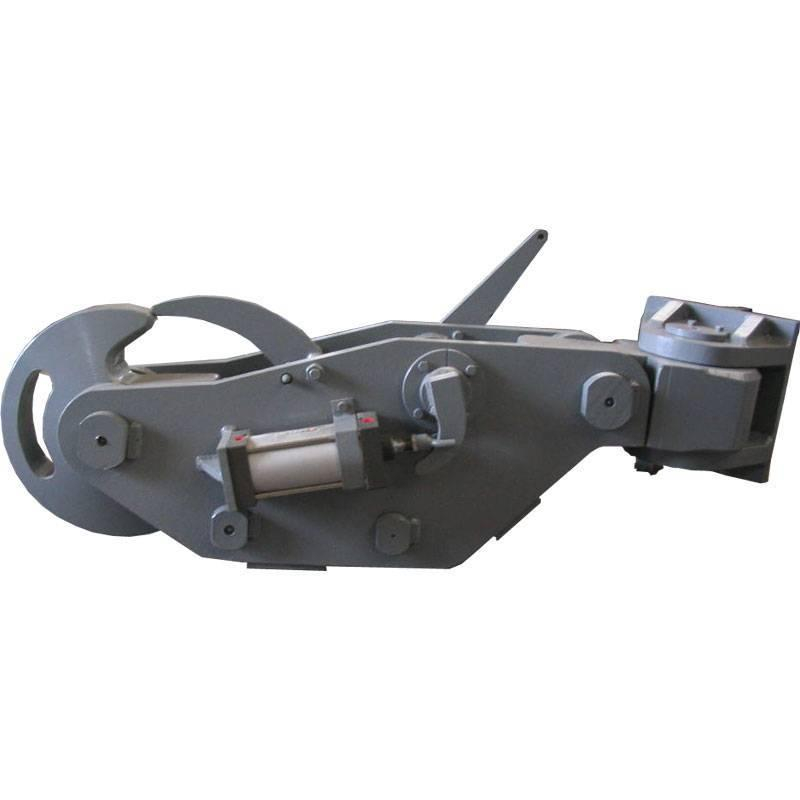

Spring hooks
Back photo of spring towing hook
Grey color spring hook
Drawing:
| Manual release spring towing hook | ||||||||||
| Product No. | Max.load(KN) | L(mm) | L1(mm) | B(mm) | B1(mm) | H(mm) | H1(mm) | H2(mm) | R(mm) | Weight (KG) |
| MSH-001 | 16 | 822 | 145 | 232 | 150 | 180 | 150 | 157 | 309 | 56.6 |
| MSH-002 | 25 | 916 | 142 | 260 | 130 | 190 | 130 | 141 | 345 | 83.7 |
| MSH-003 | 40 | 1180 | 184 | 330 | 208 | 270 | 228 | 189.5 | 445 | 177.9 |
| MSH-004 | 63 | 1411 | 196 | 342 | 200 | 284 | 160 | 192 | 563 | 267.9 |
| MSH-005 | 100 | 1710 | 253 | 410 | 260 | 376 | 250 | 256.5 | 684 | 558.1 |
| MSH-006 | 160 | 1936 | 270 | 458 | 320 | 400 | 210 | 261 | 741 | 646.9 |
| MSH-007 | 220 | 2448 | 324 | 560 | 310 | 490 | 300 | 310 | 952 | 1269.1 |
| MSH-008 | 320 | 2128 | 315 | 590 | 342 | 430 | 280 | 332 | 828 | 1058.8 |
| MSH-009 | 400 | 2259 | 330 | 640 | 320 | 472 | 300 | 355 | 880 | 1340.1 |
Spring towing hook:
1. Durable, long lifetime.
2. Warranty period: 12 Months.
3. Excellent quality and fair price
4.hydraul
Spring towing hook:
Hydraulic release spring towing hook :
1. Durable, long lifetime.
2. Warranty period: 12 Months.
3. Excellent quality and fair price
Description:
SWL: 16kN, 25kN, 40kN, 63kN, 100kN, 160kN, 220kN,320kN
Test load : 32kN, 50kN, 80kN, 126kN, 200kN, 320kN, 440kN,640kN
Release load: 16kN, 25kN, 40kN, 63kN, 100kN, 160kN, 220kN,320kN.
Movement: Side movement
Material of hook:EH36
Material of protect panel:Q345B
Material of bolt:35CrMo
Material of Spring:60SiMn
Material of Roller:Q345
Picture:
Spring hooks
Back photo of spring towing hook
Grey color spring hook
Drawing:
| Manual release spring towing hook | ||||||||||
| Product No. | Max.load(KN) | L(mm) | L1(mm) | B(mm) | B1(mm) | H(mm) | H1(mm) | H2(mm) | R(mm) | Weight (KG) |
| MSH-001 | 16 | 822 | 145 | 232 | 150 | 180 | 150 | 157 | 309 | 56.6 |
| MSH-002 | 25 | 916 | 142 | 260 | 130 | 190 | 130 | 141 | 345 | 83.7 |
| MSH-003 | 40 | 1180 | 184 | 330 | 208 | 270 | 228 | 189.5 | 445 | 177.9 |
| MSH-004 | 63 | 1411 | 196 | 342 | 200 | 284 | 160 | 192 | 563 | 267.9 |
| MSH-005 | 100 | 1710 | 253 | 410 | 260 | 376 | 250 | 256.5 | 684 | 558.1 |
| MSH-006 | 160 | 1936 | 270 | 458 | 320 | 400 | 210 | 261 | 741 | 646.9 |
| MSH-007 | 220 | 2448 | 324 | 560 | 310 | 490 | 300 | 310 | 952 | 1269.1 |
| MSH-008 | 320 | 2128 | 315 | 590 | 342 | 430 | 280 | 332 | 828 | 1058.8 |
| MSH-009 | 400 | 2259 | 330 | 640 | 320 | 472 | 300 | 355 | 880 | 1340.1 |
