DEYUAN MARINE
DYES
Marine Evacuation System
Marine Evacuation System Single Chute Vertical Passage
CCS
Single chute vertical passage
10~22 meters
2300*1600*2200
1360-1480
10-22
300
60
packed in standard export box
15-30 days
Marine Evacuation System Single Chute Vertical Passage
Single chute vertical passage Marine Evacuation System
1.Specification: 10~22 meters.
2.Approval:CCS.

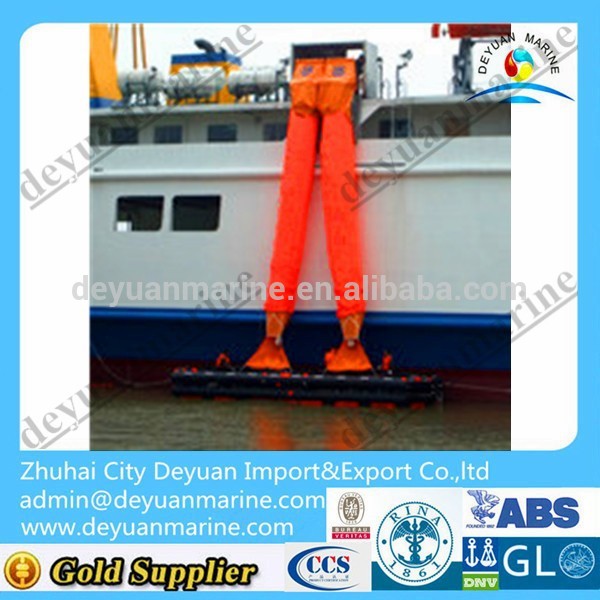

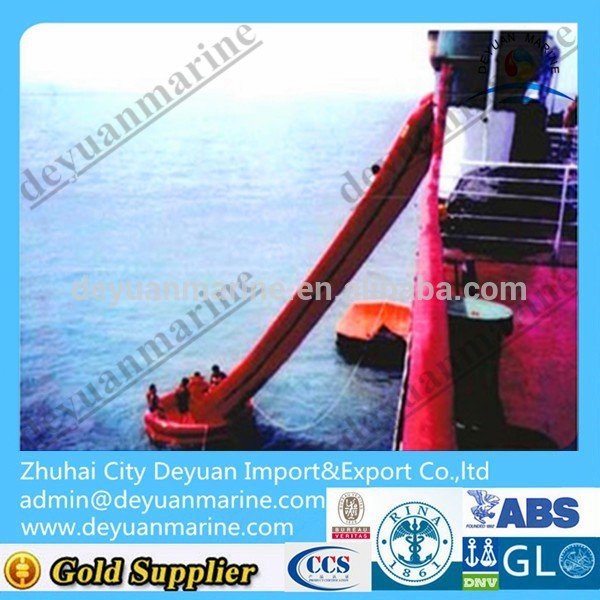

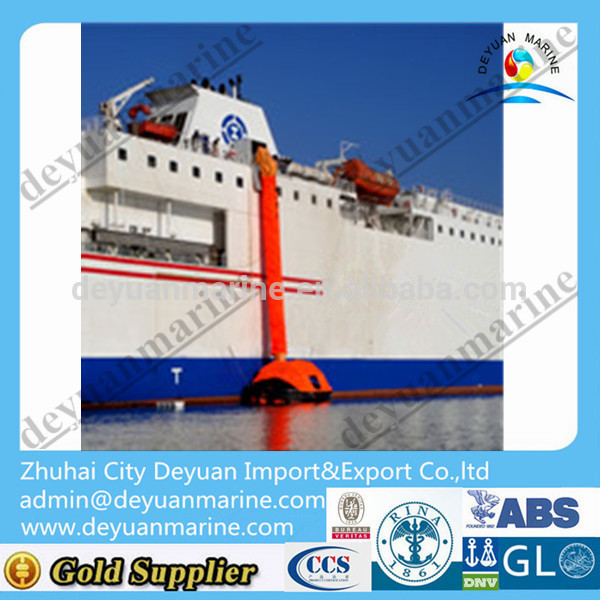

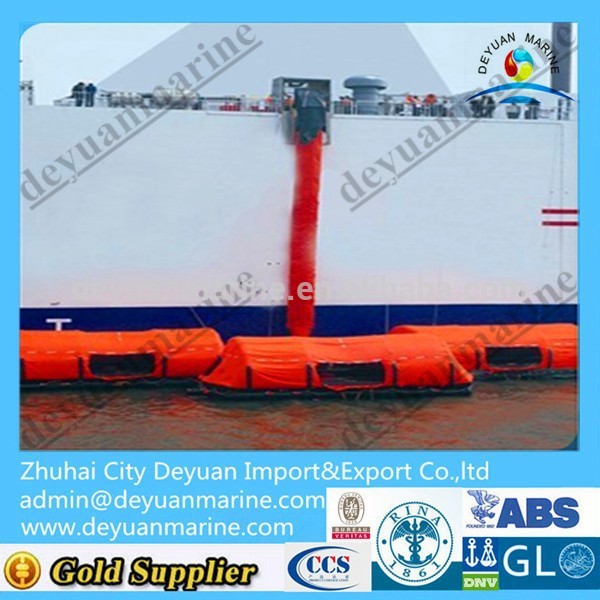

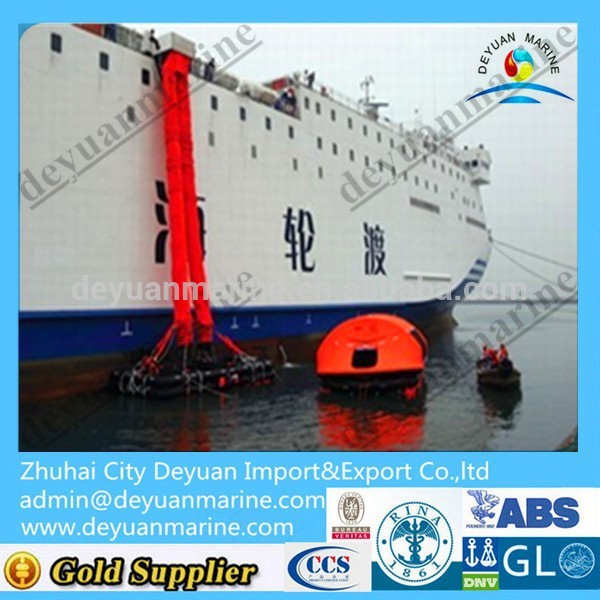

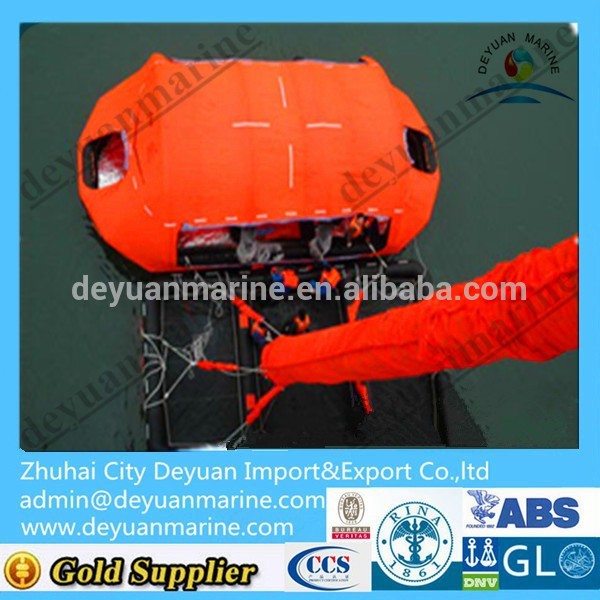

The Marine Evacuation System is stowed in the stainless steel container on the deck. When releasing the handle, the system will be formed into the sea automatically.
Approval standard |
1. MSC.81(70)Revised Recommendation on Testing of Life-saving Appliances |
2. MSC.48(66)International Life-saving Appliance Code |
Model | Maximum Stowage height | Maximum assigned | Capacity on the platform | Weight | Dimension of container |
MES-VP10.0-300 | 10 | 300 | 60 | 1360 | 2300×1600×2200 |
MES-VP11.0-300 | 11 |
|
| 1370 |
|
MES-VP12.0-300 | 12 |
|
| 1380 |
|
MES-VP13.0-300 | 13 |
|
| 1390 |
|
MES-VP14.0-300 | 14 |
|
| 1400 |
|
MES-VP15.0-300 | 15 |
|
| 1410 |
|
MES-VP16.0-300 | 16 |
|
| 1420 |
|
MES-VP17.0-300 | 17 |
|
| 1430 |
|
MES-VP18.0-300 | 18 |
|
| 1440 |
|
MES-VP19.0-300 | 19 |
|
| 1450 |
|
MES-VP20.0-300 | 20 |
|
| 1460 |
|
MES-VP21.0-300 | 21 |
|
| 1470 |
|
MES-VP22.0-300 | 22 |
|
| 1480 |
