Marine Quardruple quick release mooring hook

Specifications

Quick release hook:
1. Durable, long lifetime.
2. Warranty period: 12 Months.
3. Excellent quality and fair price
4.SWL:150

Quick release mooring hook:

Marine Quardruple quick release mooring hook :

Feature:

1. Durable, long lifetime.

2. Warranty period: 12 Months.

3. Excellent quality and fair price

Material:hook body:quality alloy.

Quick release hook will be entirely sprayed with zinc and the thickness.

Supply Scope:Single QRH.Double QRK, Triple QRH,Quadruple QRH and Six QRH.

Main technical hook:

pull of hook body for one unit:                    350-2500KN

quantity of hook body for one handle:        4 hooks

operating force by handle:                        <150N

swing angle of hook body in horizontal:      45~90⁰

swing angle of hook body in vertical:           45⁰

puling speed of electric capstan:                 18~25m/min

pull of electric capstan:                               10KN~30KN

working diameter of capstan:                      250mm

Capstan

Nominal pull: 1500 kgs

Max pull : 3000 kgs

Hauling in speed: 20-30 Metres/min

Motor

Motor Type: ABB (Drawing attached)

Motor Capacity:7.5KW AT±1500 RPM

Power supply: 415V.3 Phase 50HZ

Insulation Class: F

Protection: IP65

Motor started: EX II 2 GD EExd-IIB-T4

Reversible with integrated brake

ATEX Certified

Starter/Foot Switch:

Foot Switch Explosion proof grade: EX II 2 GD EExd-IIB-T4/ EX II 2GD EExd-IIC-1

Protection: IP65

ATEX Certified

Standard Coating:

One Layer Epoxy Zinc D.F.T. 40mu. And One Layer Epoxy (Black) D.F.T. 200mu., After Shot blasting to SA2.5.

Material:

Hook:ZG35CrMo, Hook Housing:Q345B, All Axis Pin:40Cr,Foundation Bed:Q345B, Basic Material:35#,

Rope guide: stainless SS316 without painting.

Scope of Product Supply:

Complete equipment including hooks, Frame for hook, Steel structure for Motor and Gear Motor, Capstan, Foot switch, Control Panel, Holding Down Bolts and Template

Scope of Certificate and Report Supply:

ABS Certificate ,Inspection Release Note, Certificate of Conformity, Test and Inspection Plan, WPS, PQR, Welder Qualifications, Weld Map, NDT Report, Operator Qualification, Material Certificate, Dimensional Report, FAT Report, Motor Certificate Paint Inspection Report

Certificate:CCS,ABS,BV,DNV,GL

Also,We could produce as clients draiwng or do OEM

Available type:

Manual release spring towing hook

Pneumatic control spring towing hook

Manual release disc type towing hook

Pneumatic control disc type towing hook

Manual release harbour type towing hook

Pneumatic control harbour type towing hook

Single hook assembly

Double hook assembly

Triple hook assembly

Quardruple hook assembly

Pelican hook

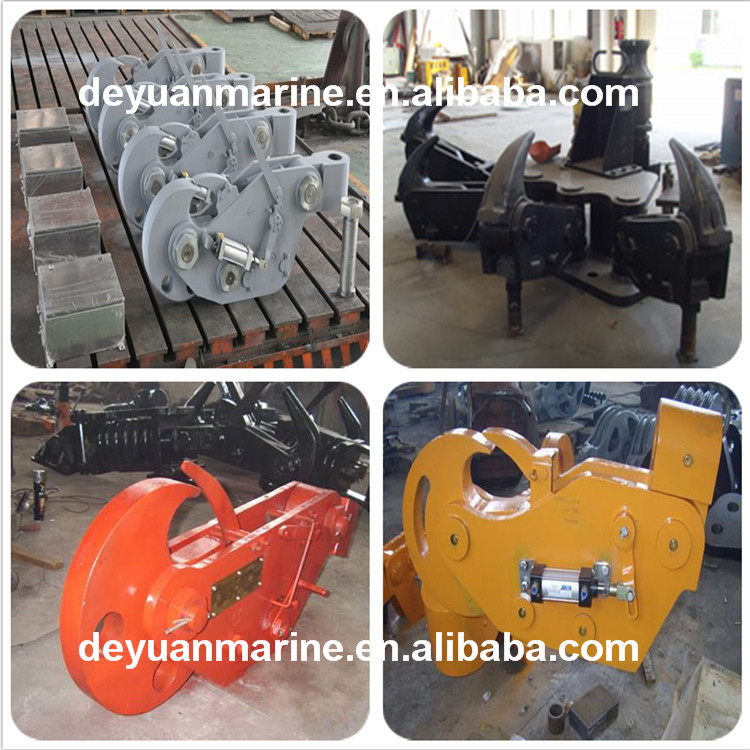

Marine Quardruple quick release mooring hook
Product No.	S.W.L.	Cap.	Wt.	A	B	BB	C	CC	D	E	EE	F	G	H	K	L	M	N	R	T	Z	X
QHA-001	400	1600	928	578	650	1120	100	470	70	235	300	35	370	1228	96	300	235	235	90	300	40	7*M647
QHA-002	600	2400	1670	778	750	1185	115	445	78	275	330	45	407	1528	130	325	255	230	100	320	56	7*M72
QHA-003	750	3000	2032	823	800	1300	150	505	86	290	355	45	417	1623	130	350	280	265	100	340	50	7*M80
QHA-004	1000	4000	2807	859	850	1365	125	520	96	300	395	50	447	1709	150	376	295	265	125	362	60	7*M90
QHA-005	1250	5000	3199	930	850	1365	125	520	96	300	395	55	479	1780	150	376	295	265	125	362	60	7*M90
QHA-006	1500	6000	4698	1118	925	1570	170	605	86	325	435	55	499	2043	150	426	325	280	135	415	60	9*M80
