Reverse osmosis ro mini seawater desalting plant
10~250person.
Compact design for easy installation.
high quality titanic plate,316LSS&Al-Bronze for other component.
AC380V, 50HZ, 3/AC 440, 60Hz, 3
IMO MEPC159(55),MARPOL 73/78.
CCS,EC,BV,ABS.
ships &vessels.
Wooden case
5 Days after payment

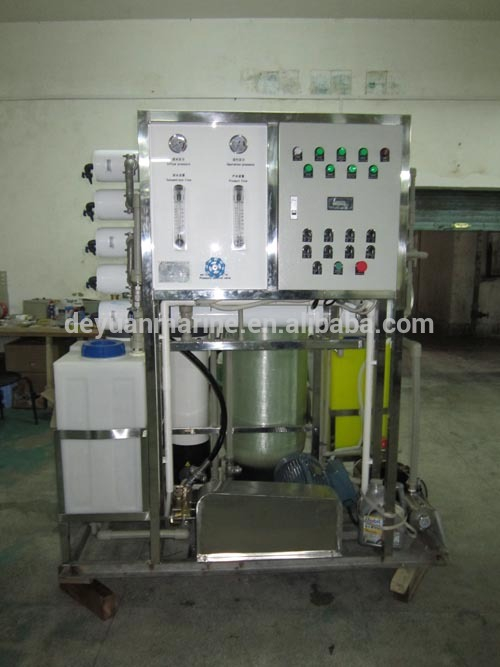

Marine Reverse Osmosis desalting unit ro water purification unit
1.Type:Reverse Osmosis fresh water geneator.
2.Capacity:5~1000T/D.
3.flow mimic diagram indicates working condition.
4.High standard R.O. elements reducing maintenance cost.
Marine Reverse Osmosis Fresh Water Generator
China Deyuan Marine Fitting Co.ltd is a top professional supplier of fresh water generator,fresh water maker,reverse osmosis desalting plant,reverse osmosis desalting unit.
In reverse osmosis (RO) seawater is forced at high pressure (to overcome the osmotic pressure) through a semi-permeable membrane. The membrane works like a filter, only allowing certain atoms and molecules through. The process makes it possible to separate the water from the dissolved materials. The membrane filter retains solids, bacteria, viruses, lime and, for instance, heavy metals.
Main features of reverse osmosis fresh water maker
---flexible design for muti purpose of commercial/navy ship, engineering barge, offshore platform, island water station &onshore facilities.
---wide range of production subject to demand from 5~1000T/D
---flow mimic diagram indicates working condition
--fully automatic control by PLC integrated in one push button
---Regular chemical dosing & flushing secure the unit always working in good condition
--- High standard R.O. elements reducing maintenance cost
Seawater Desalting Plant
China Deyuan Marine Fitting Co.ltd is a professional supplier of marine fresh water maker,marine fresh water generator,sea water desalting plant,sea water desalting unit,reverse osmosis fresh water generator etc,pls contact us for more details.
Mode(T/D) | FWG-5 | FWG-10 | FWG-16 | FWG-20 | FWG-30 | FWG-50 |
capacity | 5 | 10 | 16 | 20 | 30 | 50 |
Length(mm) | 770 | 970 | 970 | 1160 | 1400 | 1400 |
Width(mm) | 600 | 870 | 1150 | 1150 | 1250 | 1450 |
Height(m m) | 960 | 1150 | 1150 | 1415 | 1550 | 1550 |
Dry weight(kg) | 300 | 650 | 900 | 1150 | 1350 | 1450 |
Operation weight(kg) | 350 | 700 | 950 | 1250 | 1450 | 1600 |
