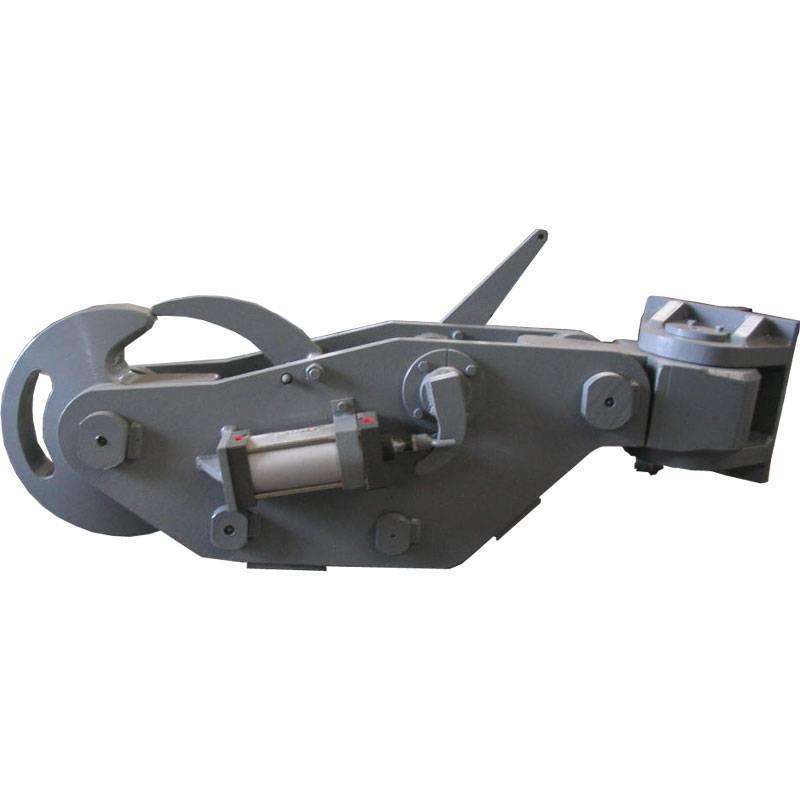

Marine manual release harbour type towing hook

Specifications

Harbour type towing hook :
1. Durable, long lifetime.
2. Warranty period: 12 Months.
3. Excellent quality and fair price
4.T

Harbour type towing hook :

Marine manual release harbour type towing hook :



Feature:

1. Durable, long lifetime.

2. Warranty period: 12 Months.

3. Excellent quality and fair price

SWL:       150kN, 200kN,  300kN, 400kN, 500kN, 600kN,800KN,1000KN.

Test load :300kN, 400kN, 600kN, 800kN, 1000kN, 1200kN,1600KN,2000KN.

Release load:150kN, 200kN,  300kN, 400kN, 500kN, 600kN,800KN,1000KN.

Type: Spring Type

Movement: Side movement

Material of hook:EH36

Material of protect panel:Q345B

Material of bolt:35CrMo

Material of Spring:60SiMn

Material of Roller:Q345

Pneumatic Release from wheel house             Manual Release at hook body

Solenoid Voltage:24V DC   The Length of Rubber Hose:20M   Max Inlet Pressure:30Bar

Dia. of Rubber Hose ID:12mm OD:8mm

Offer scope: Towing Hook, Stainless Cylinder, Solenoid Valve, Rubber Hose.

Accessories:

FRL Unit   Swivel: Standard connecting swivel       Gauge: Pressure gauge

Controls: Local and remote(for wheel house)         CAD General would offer

Schematic for Electric-Pneumatic Remote Control Attached

Life Time: 20 years

Our Warranty

We undertake to remedy any defective components, caused by poor design, material or workmanship for the goods supplied.

Our liability is limited to replacing the defective parts, which appear within a period of 12 months from date of invoice, provided that our storage, installation, operating and maintenance manual is properly followed.

Certificate CCS,ABS,BV,DNV,GL,LR,KR.

All our towing hook can be supplied with various options such as

1. Small fairlead for guiding manual release wire to bridge/wheelhouse.

2. Mounting foundation for mounting the towing hook onto the ship’s deck. The foundation can be welded or bolted onto the ship’s deck, and/or horizontal brackets.

3. Electric-Pneumatic Remote Control system.

4. Electric-Hydraulic Remote Control system.

5. Radial arm construction and fixed radial construction.

6.Load Monitoring System for continuous measurement of towing loads.

7. Anti-slip-rope device(keeper)

Also, We could produce as clents drawing or do OEM.

Available type:

Manual release spring towing hook

Pneumatic control spring towing hook

Manual release disc type towing hook

Pneumatic control disc type towing hook

Manual release harbour type towing hook

Pneumatic control harbour type towing hook

Single hook assembly

Double hook assembly

Triple hook assembly

Quardruple hook assembly

Pelican hook

Drawing:



Manual release harbour type towing hook
Product No.	Type	S.W.L.	T.L.	R.L.	W.t	A	B	C	D	E	F	G	H	K	L	M	N	N	P
HHB-001	MXX015	150	300	150	52	521	571	100	100	150	40	174	316	65	110	50	100	100	150
HHB-002	MXX030	300	600	300	143	788	868	160	130	225	60	268	461	96	180	80	125	125	207
HHB-003	MXX060	450	900	450	289	1023	1123	200	160	260	80	350	616	130	210	100	148	148	224
HHB-004	MXX075	562	1125	562	352	1073	1183	200	180	290	90	350	616	130	250	110	170	170	245
HHB-005	MXX100	1000	1500	1000	526	1159	1279	230	200	330	100	400	700	150	250	120	212	212	333
