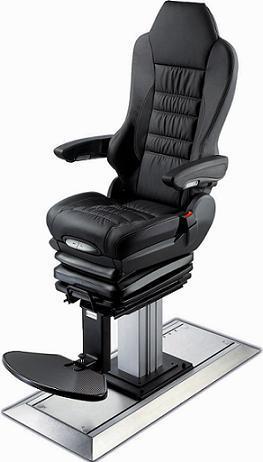

Multi-Point Positioning Marine Driving Seat

  • China (Mainland)

  • Deyuan

  • Chair

  • Export standard packaging.

  • Depends on your order quantity.



Marine Driving Seat :

Multi-Point Positioning Marine Driving Seat :

Function:

1.Ergonomic design.

2. Seat can move in high strength double-slide rail.

3.Adjustable backrest and headrest.

4.Seat height may be angle adjusted.

5.Seats can be moved back and forth.

6.Folding / angle-adjustable comfortable seat armrest.

7.Seat can rotated 360 degrees, multi-point positioning.

8.Foot pedal height adjustable / folding.

9.Column can be vertically lifting.

Material:

1.Slide rail and positioning base uses the high strength aluminum alloy, inside and outside decorative mosaic made of stainless steel.

2.lifting column with steel,stainless steel synthesis.

3.The seat lifting and tilting, move back and forth, back angle adjusting are used in steel structure.

4. The seat back and the seat cushion adopts the steel inner core and PU cold foam forming disposable sponge synthesis, outsourcing leather or cloth.

5.Pedal steel plate inner core and environmentally friendly rubber synthetic.

6. Pneumatic lifting core components pneumatic bar the use of German imports of Stabilus.

Function data:

1.Upper part of the seat can be moved back and forth of 120mm,height adjustment 60mm, seat inclination angle range of ±12°.

2. Seat backrest with adjustable angle of85°-150°, the hearest adjusted up and down50mm, handrest multi-point positioning control.

3. The seat of pneumatic lifting regulating range 0-150mm;

4.The seat can rotate 360°and locked ,4-point positioning control.

5.Seat rail slide in 0-6000 mm mobile,500mm rail width and depth 28mm

6. Seat pedal can rotate 90° and regression, upper and lower position adjusting range of 0-50mm.

7.Seat can bear more than150FT.LB torsion, reached AD grade standard.
