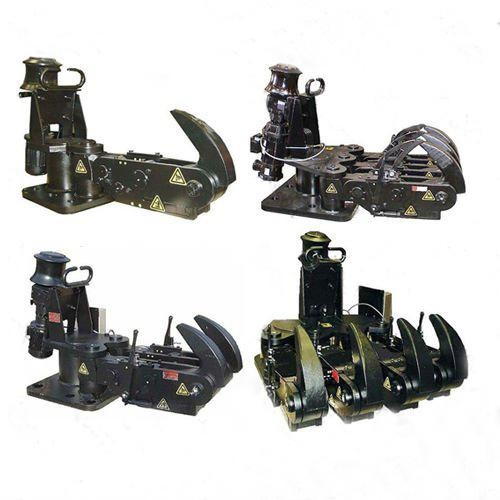

Pneumatic control harbour type towing hook

Specifications

Towing hook :
1. Durable, long lifetime.
2. Warranty period: 12 Months.
3. Excellent quality and fair price
4.SWL:150KN to 1

Towing hook :

Pneumatic control harbour type towing hook:

Feature:

1. Durable, long lifetime.

2. Warranty period: 12 Months.

3. Excellent quality and fair price

4.SWL:150KN to 1000KN

SWL:       150kN, 300kN,  450kN, 562kN, 1000kN

Testload : 300kN, 600kN,  900kN, 1125kN, 1500kN

Releaseload:150kN, 300kN,  450kN, 562kN, 1000kN

Weight:      56kgs, 156kgs, 314kgs, 384kgs, 573kgs

Type: Harbour Type

Movement: Side movement

Material of hook:EH36

Material of protect panel:Q345B

Material of bolt:35CrMo

Pneumatic Release from wheel house

Manual Release at hook body

Solenoid Voltage:24V DC

The Length of Rubber Hose:20M

Max Inlet Pressure:30Bar

Dia. of Rubber Hose ID:12mm OD:8mm

Offer scope: Towing Hook, Stainless Cylinder, Solenoid Valve, Rubber Hose.

Accessories:

FRL Unit   Swivel: Standard connecting swivel

Gauge: Pressure gauge

Controls: Local and remote(for wheel house)

CAD General Drawing would offer

Schematic for Electric-Pneumatic Remote Control Attached

Long economic life of over 20years.

All our towing hook can be supplied with various options such as

1. Small fairlead for guiding manual release wire to bridge/wheelhouse.

2. Mounting foundation for mounting the towing hook onto the ship’s deck. The foundation can be welded or bolted onto the ship’s deck, and/or horizontal brackets.

3. Electric-Pneumatic Remote Control system.

4. Electric-Hydraulic Remote Control system.

5. Spring shock-absorber construction.

6. Radial arm construction and fixed radial construction.

7.Load Monitoring System for continuous measurement of towing loads.

8. Anti-slip-rope device(“keeper”)

Certificate:CCS,ABS,BV,DNV,GL.LR,KR.

Available type:

Manual release spring towing hook

Pneumatic control spring towing hook

Manual release disc type towing hook

Pneumatic control disc type towing hook

Manual release harbour type towing hook

Pneumatic control harbour type towing hook

Single hook assembly

Double hook assembly

Triple hook assembly

Quardruple hook assembly

Pelican hook

Drawing:



Pneumatic control harbour type towing hook
Product No.	Type	S.W.L.	T.L.	R.L.	W.t	A	B	C	D	E	F	G	H	K	L	M	N	N	P
PHH-001	MXX015	150	300	150	52	521	571	100	100	150	40	174	316	65	110	50	100	100	150
PHH-002	MXX030	300	600	300	143	788	868	160	130	225	60	268	461	96	180	80	125	125	207
PHH-003	MXX060	450	900	450	289	1023	1123	200	160	260	80	350	616	130	210	100	148	148	224
PHH-004	MXX075	562	1125	562	352	1073	1183	200	180	290	90	350	616	130	250	110	170	170	245
PHH-005	MXX100	1000	1500	1000	526	1159	1279	230	200	330	100	400	700	150	250	120	212	212	333
