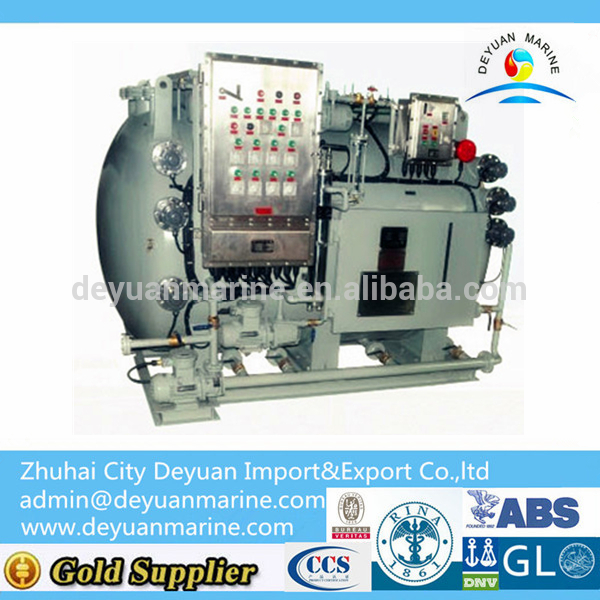

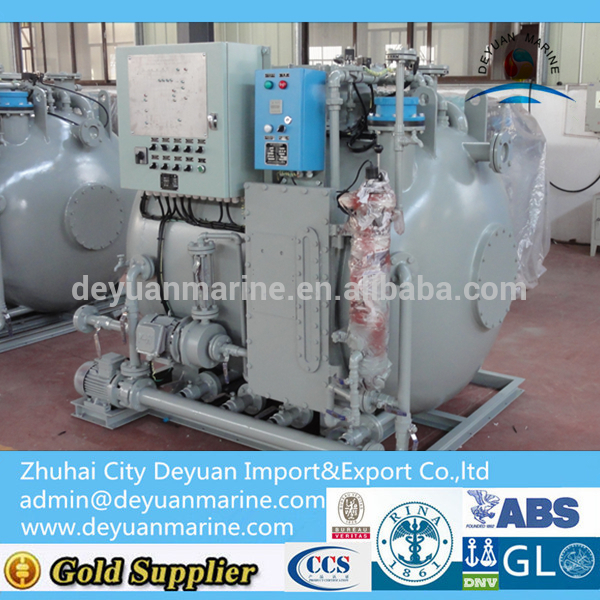

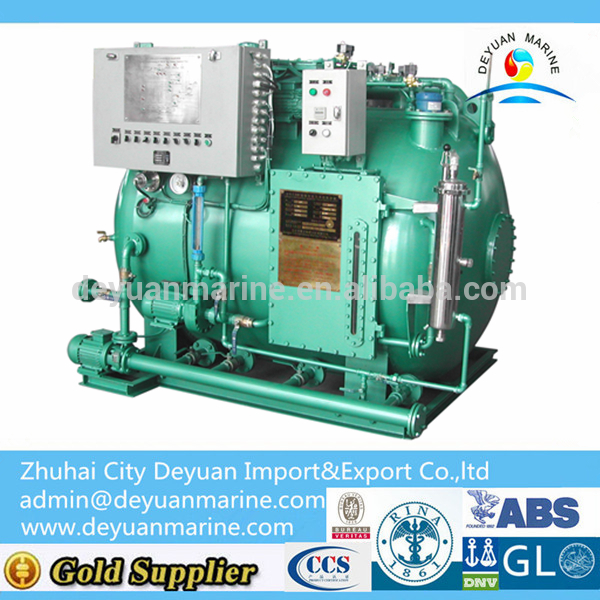

SWCM-400 sewage treatment plant for water treat Biochemical Marine Sewage Treatment Plant

SWCM-400 sewage treatment plant for water treat Biochemical Marine Sewage Treatment Plant

Biochemical Marine Sewage Treatment Plant with good price

Marine Sewage Treatment Plant

1.capacity:10~250person.

2.standard: IMO MEPC159(55),MARPOL 73/78.

3.certificate : CCS,EC,BV,ABS.

4.usage: ships &vessels.

Biochemical Marine Sewage treatment plant

China Deyuan Marine Fitting Co.ltd is a professional supplier of marine equipment,such as 15ppm bilge separator,15ppm oily water separator,15ppm bilge alarm,oil content meter,marine sewage treatment plant etc.Pls contact us for more details if you are interested.

Main Technical Table

Model			15	20	25	30	40	50	60	80	100	150	200		250
Load	Average load L/d		1190	1540	1890	2310	3080	3780	4480	6020	7700	11200	14700		18200
	Peak load L/h		149	193	237	289	385	473	560	753	963	1400	1838		2275
	Organic load kgBOD5/d		0.595	0.77	0.945	1.155	1.54	1.89	2.24	3.01	3.85	5.6	7.35		9.10
Rated capacity(P)			15	20	25	30	40	50	60	80	100	150	200		250
Max capacity(P)			17	22	27	33	44	54	64	86	110	160	210		260
Electricity			AC380V, 50HZ, 3φ/AC       440, 60Hz, 3φ
Power(KW)			1.5	1.5	1.5	1.5	1.5	2.0	2.0	2.5	2.5	3.0
External dimensions L*W*H(mm)			1550× 1400× 1600	1650× 1400× 1600	1850× 1500× 1635	1950× 1500× 1635	1800× 1700× 1900	1900× 1700 1950	2100× 1700× 2000	2500× 1900× 2150	2500× 1900× 2300	3150× 2400× 2300
Weight		Dry weight (Kg)	1150	1200	1250	1350	1500	1750	1950	2150	2900	3800
		Wet weight (Kg)	2600	2933	3210	3928	4689	5665	6486	8100	10400	14680
Discharge standard			TSS35mg/L, BOD525mg/L, COD125mg/L, Coli form100pcs/100ml, PH:68.5
