Sandstone Aluminium Honeycomb Panels

Availability:

Sandstone Aluminium Honeycomb Panels


1.Sandstone honeycomb panel’s Describe

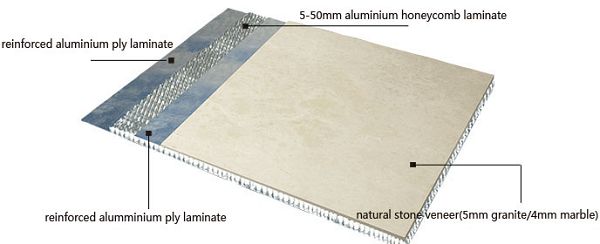

Sandstone honeycomb panels are natural stone composite panels mixed with a thin sandstone plate and an aluminum honeycomb sheet backing which is aluminum honeycomb core between impervious, high-rigidity,  fiber-reinforced epoxy skin.


Our Sandstone Honeycomb Panels product has four major benefits when compared to traditional solid stone systems:


●Lighter


●Stronger


●Impervious to water


●Tested


Panels from Stone Panels, Inc. are one-fifth the weight of dimensional stone and provide huge savings regarding installation time, labor, and structural requirements.  panels can resist 60 times more impact than granite that is 3 centimeters thick as a result of our patented manufacturing process.  The fiber-reinforced epoxy skin found on our natural stone composite panels creates a waterproof barrier, making them impervious to water. These attributes, along with thorough testing for acid freeze-thaw, air and water filtration, structural and impact load, fire, attachment systems and more, place Sandstone Honeycomb Panels panels at the forefront as a building material of choice.

13

2.Raw Material

Aluminum top panel: thickness 3-5mm

Aluminum bottom panel: thickness 0.5-1.0mm

Aluminum honeycomb: the core material adopts model 3003H18 hexagon aluminum foil being 0.04-0.07mm thick with side length of 5-6mm.

Adhesives: adopts bi-component polymeric epoxide membrane and bi-component modified epoxy resins.


Sandstone Aluminium Honeycomb Panels Specification

Front Sheet 4-6mm natural stone veneer
Reverse Panel 10/15/20/25mm aluminum honeycomb panel
Total Thickness 15/20/25/50mm
Standard Size 1220*2440mm&1500*3000mm
Weight 15.5kg/m2(for 20mm)
Adhesive Epoxy resin(used between -40°Cto 15°C)
