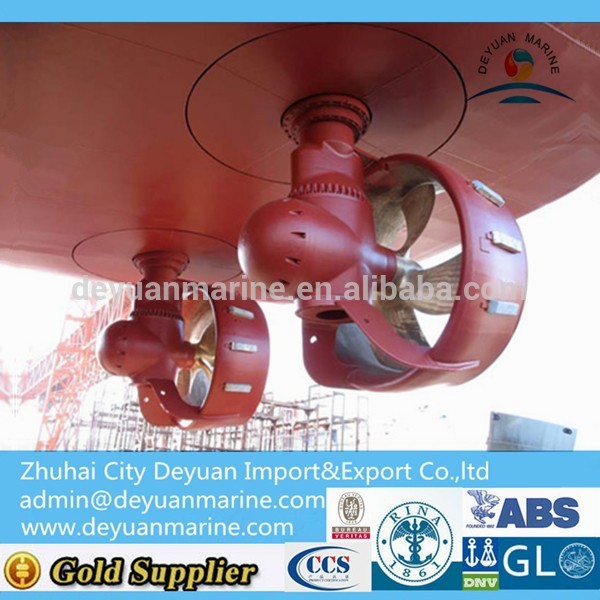

Marine Rudder Propeller
Marine Rudder Propeller
Advantages:
1.Maximum manoeuvrability.
2.Optimum efficiency.
3.Economical operation.
4.Space-saving installation.
5.Simple maintenance.
6.High reliability.
7.Optimized in terms of cavitation and vibration.
8.Dependable design.
9.Fixed or controllable-pitch propeller.
Application:
Container vessels, tankers, bulk carriers and dry cargo vessels ,Speed boat,etc.
Type | Input power Max.(KW) | Input speed rated.(rpm) | Input torque max.(N.m) | Propeller Dia.max. (mm) | Reduction ratio | Weight(kg) |
SRP12 | 45 | 2300 | 200 | 500 | 1.93 | 65 |
SRP45 | 100 | 2500 | 450 | 800 | 2.5 | 190 |
SRP85 | 210 | 2350 | 850 | 950 | 2.68 | 400 |
SRP138 | 260 | 2000 | 1380 | 1100 | 3.01 | 1200 |
SRP180A | 340 | 1800 | 1800 | 1150 | 3.46 | 1450 |
SRP180B | 280 | 1500 | 1800 | 1150 | 2.88 | 1450 |
SRP180C | 180 | 1000 | 1800 | 1150 | 2.526 | 1450 |
SRP226 | 350 | 1800 | 2260 | 1350 | 3.34 | 2000 |
SRP280 | 480 | 1800 | 2800 | 1350 | 3.96 | 2100 |
SRP310A | 580 | 1800 | 3070 | 1550 | 3.718 | 2500 |
