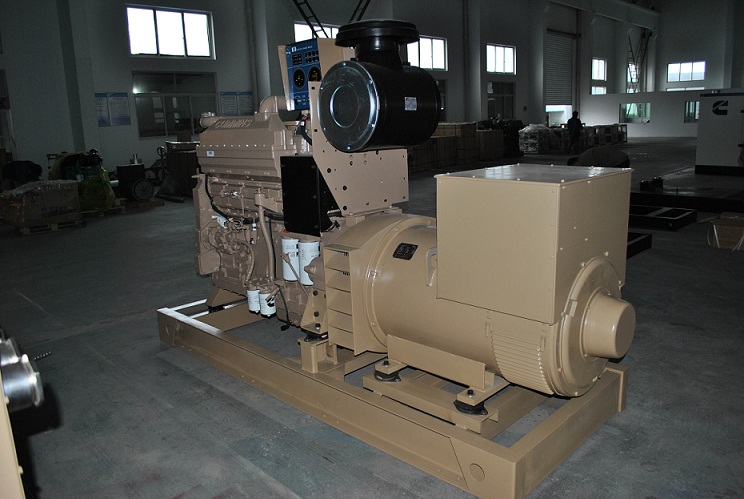

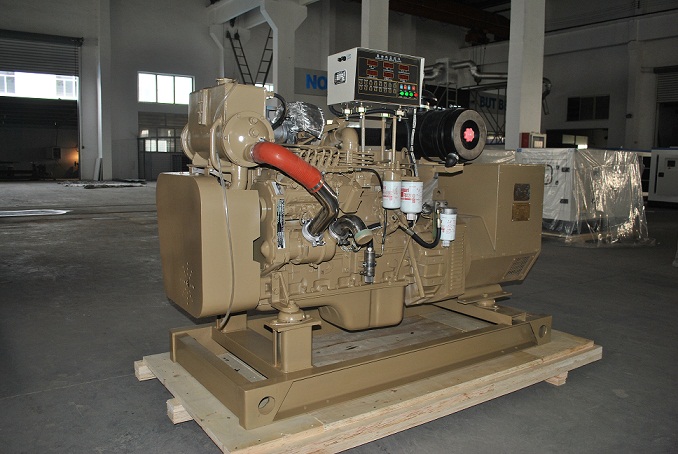

100KW Marine Cummins Genset, 120KW Marine Cummins genset:
Genset features:
Genset Model: DY-CGM120A
Engine Model: 6CTA8.3-GM155
Alternator Model: UCM274G
Rated Power: 120 KW
Standby Power: 132 KW
Rated Voltage: 380/220V, 400/230V, 415/240V, 440/254V
Frequency: 50 Hz
Power Factor: 0.8
Winding Connection: 3-phase, 4-wire
Dimension(mm): 2100*850*1500
Net Weight: 1800 KG
Genset engine details:
Engine Model: 6CTA8.3-GM155
Rated Power: 155 KW@1500 rpm
Bore * Stroke (mm): 114*135
Engine Type: 6 Cylinders, in Line, 8.3 L
Marine diesel generator
| Alternator for DY-CGM120A Generator Set | |
| Alternator Brand | Stamford |
| Alternator Model | UCM274G |
| Frequency | 50 HZ |
| Rated Votage | 380/220V, 400/230V, 415/240V, 440/254V |
| Winding Connection | 3-phrase, 4-wire |
| Power Factor(COS) | 0.8 |
| Stator Winding | Double Layer Concentric |
| Exciting Method | Brushless Self-exciting |
| Insulation System | Class H |
| Protection Class | IP23 |
| Winding Leads | 12 |
| Winding Pitch | Two Thirds |
| Voltage Regulation | ± 1.0 % |
| Efficiency | 91.9% ~ 92.4% |
| Waveform Distortion | <1.5% (no load) |
| Maximum Overspeed | 2250 Rev/Min |
| Telephone Interference(THF) | 2% |
100KW Marine Cummins Genset, 120KW Marine Cummins genset:
Genset features:
Genset Model: DY-CGM120A
Engine Model: 6CTA8.3-GM155
Alternator Model: UCM274G
Rated Power: 120 KW
Standby Power: 132 KW
Rated Voltage: 380/220V, 400/230V, 415/240V, 440/254V
Frequency: 50 Hz
Power Factor: 0.8
Winding Connection: 3-phase, 4-wire
Dimension(mm): 2100*850*1500
Net Weight: 1800 KG
Genset engine details:
Engine Model: 6CTA8.3-GM155
Rated Power: 155 KW@1500 rpm
Bore * Stroke (mm): 114*135
Engine Type: 6 Cylinders, in Line, 8.3 L
Marine diesel generator
| Alternator for DY-CGM120A Generator Set | |
| Alternator Brand | Stamford |
| Alternator Model | UCM274G |
| Frequency | 50 HZ |
| Rated Votage | 380/220V, 400/230V, 415/240V, 440/254V |
| Winding Connection | 3-phrase, 4-wire |
| Power Factor(COS) | 0.8 |
| Stator Winding | Double Layer Concentric |
| Exciting Method | Brushless Self-exciting |
| Insulation System | Class H |
| Protection Class | IP23 |
| Winding Leads | 12 |
| Winding Pitch | Two Thirds |
| Voltage Regulation | ± 1.0 % |
| Efficiency | 91.9% ~ 92.4% |
| Waveform Distortion | <1.5% (no load) |
| Maximum Overspeed | 2250 Rev/Min |
| Telephone Interference(THF) | 2% |
