19mm LCT Windlass

  • Deyuan Marine

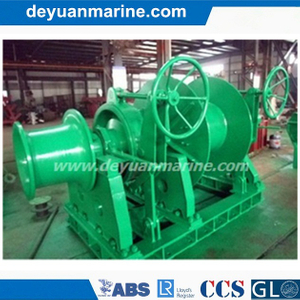

19mm LCT Combined Windlass

General description

The LCT combined Windlass is design for the Landing Craft Tank use to anchor operation and

RAM door operation, Normally will be designed symmetry installed on port and starboard side of the LCT.

Two windlass are working together to lift the RAM by hydraulic centralized control to

get the two windlass synchronous. When anchoring, they operated independently.

All the detail are comply with the classfication standard and client's requirement.


Working chain diameter: 19mm(AM2)

Working load: 15.3kn

Overload: 23.0kn

Support load: 95kn

Nominal speed: 9m/min

Max anchoring deepth: 82.5m

Drum load: 15kn

Drum support load: 45kn

Drum speed: 12m/min

Drum capacity: D12mmx100m
