20 Man Marine Life Raft

Availability:
  • DEYUAN

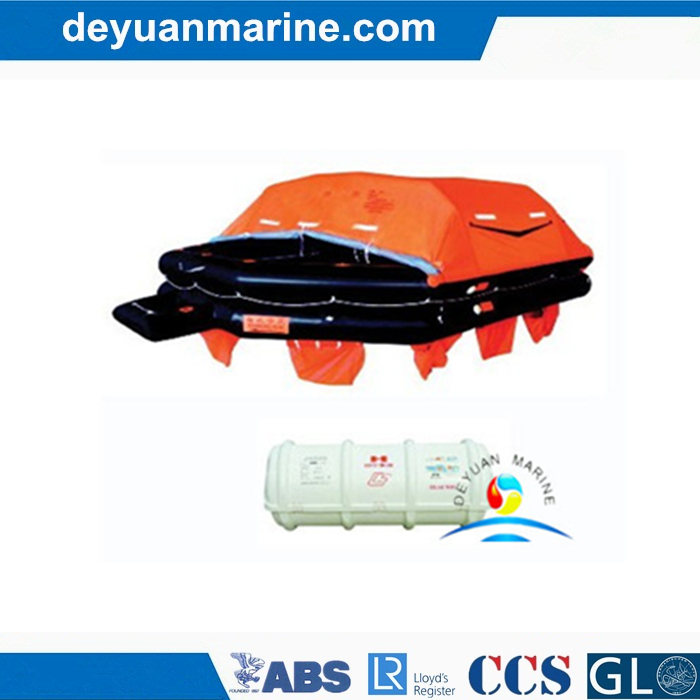

20 Man marine Life raft
China Deyuan Marine Fitting Co., ltd Is an enterprise specialized in the production of ship gas bilges raft.

Companies design and manufacture of inflatable life raft existing 10 series,

more than 60 models specifications of the products. Pls contact us for more details.

Type: 20\25Man Life raft.
Suitable for installing in the vessels sailing on international voyages.
It meets the China MSA-" Regulations for the Statutory Surveys of Ships and offshore Installations— Technical Regulations for the Statutory Surveys of Sea-going Ships Engaged inDomestic Voyages"2004, and its 2008 Amendments, Part4, Ch. 3. And SOLAS(74/96), LSA, MSC. 81(70), MSC. 226(82), MSC. 218(82), MSC. 293(87), ISO15738(2002).
Max. Storage Height: 18~36m.
Equipment Outfit: SOLAS A\B PACK.
Certificates: CCS, GL.

 Type20Man25Man
ShapeRectangular octagon

Capacity (Persons)2025
Dimension(L×W×H)4304×2974×16004894×3194×1650
Cylinder6L×27.5L×2
Container dimension
    (mm)
SOLAS A PACK  (a×b)1435×7201470×735
SOLAS B PACK  (a×b)1335×6801435×720
Packaging dimension
    (mm)
SOLAS A PACK  (c×d×e)1560×790×7801540×805×790
SOLAS B PACK  (c×d×e)1410×750×7301510×790×780
Required bollard pull  (KN)For 2knot speed0.801.00
For 3knot speed1.801.85
Weight   (kg)≤160≤185
