Davit-Launched Self-Righting Inflatable Liferaft

Availability:
  • DEYUAN

Davit-launched self-righting Inflatable Liferaft

China Deyuan Marine Fitting Co., Ltd Is an enterprise specialized in the production of ship gas bilges raft.

 Companies design and manufacture of inflatable life raft existing 10 series,

more than 60 models specifications of the products. Pls contact us for more details.

Suitable for installing in the vessels sailing on international voyages.
It meets the China MSA-" Regulations for the Statutory Surveys of Ships and offshore Installations- Technical Regulations for the Statutory Surveys of Sea-going Ships Engaged inDomestic Voyages"2004, and its 2008 Amendments, Part4, CH. 3. And SOLAS(74/96), LSA, MSC. 81(70), MSC. 226(82), MSC. 218(82), MSC. 293(87), ISO15738(2002).

Max. Storage Height: 18~36m.
Equipment Outfit: SOLAS A /B PACK.
Certificates: CCS, GL.

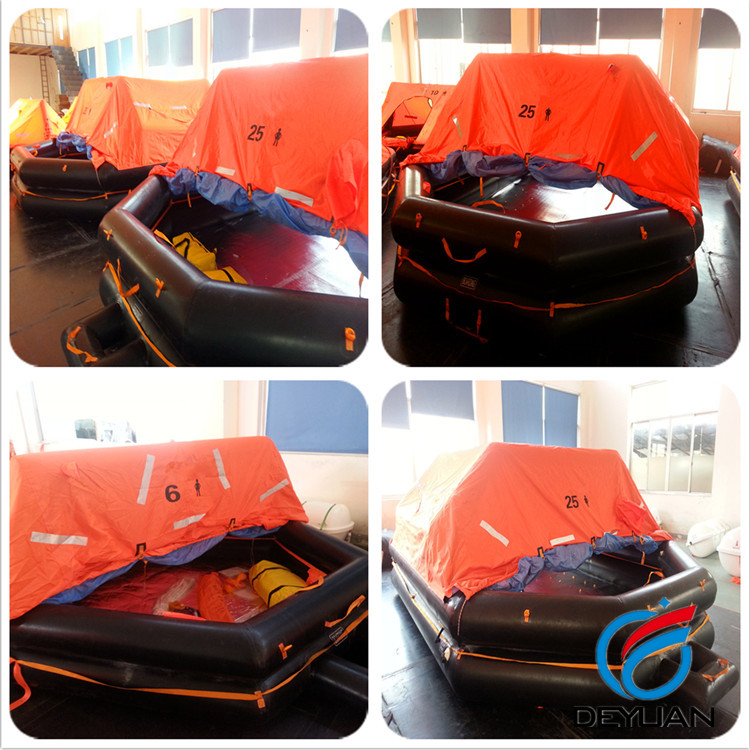

 Type 25Man
Shape Rectangular dodecagon
Capacity (Persons) 25
Dimension(L×W×H) 5255×3250×2400
Shackle position height(mm) 600
Cylinder 14L×2
Container dimension
    (mm)
SOLAS A PACK  (a×b) 1680×780

SOLAS B PACK  (a×b) 1600×780
Packaging dimension
    (mm)
SOLAS A PACK  (c×d×e) 1740×840×890

SOLAS B PACK  (c×d×e) 1660×840×890
Required bollard pull  (KN) For 2knot speed 1.55

For 3knot speed 2.48
Weight   (kg) ≤230



Davit-Launched Self-Righting Inflatable Liferaft
Davit-Launched Self-Righting Inflatable Liferaft
