DEYUAN

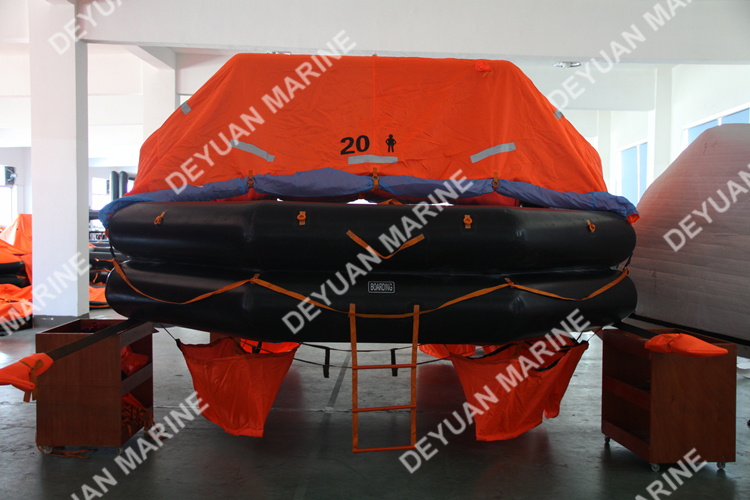

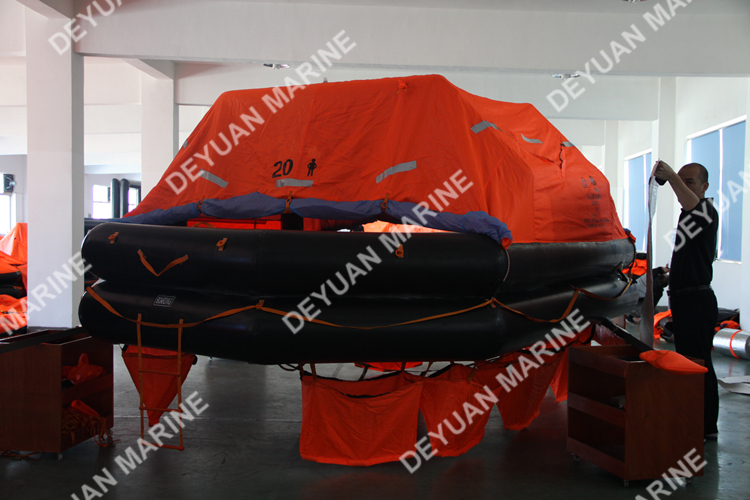

20 Man Throw Over Board Life Raft
1.20 Man Life raft.
2.Capacity(Persons):20\25
3.Shape:Rectangular octagon.
4:Cylinder(L):6L×2\7.5L×2.
Type: 20\25Man Throw Over Board Life Raft
Suitable for installing in the vessels sailing on international voyages.
It meets the China MSA-“ Regulations for the Statutory Surveys of Ships and offshore Installations—Technical Regulations for the Statutory Surveys of Sea-going Ships Engaged inDomestic Voyages”2004,and it′s 2008 Amendments,Part4, Ch.3.and SOLAS(74/96),LSA,MSC.81(70),
MSC.226(82), MSC.218(82), MSC.293(87),ISO15738(2002).
Max. Storage Height: 18~36m.
Equipment Outfit: SOLAS A\B PACK.
Certificates:CCS,GL.
Type | 20Man | 25Man | |
Shape | Rectangular octagon
| ||
Capacity (Persons) | 20 | 25 | |
Dimension(L×W×H) | 4304×2974×1600 | 4894×3194×1650 | |
Cylinder | 6L×2 | 7.5L×2 | |
Container dimension (mm) | SOLAS A PACK (a×b) | 1435×720 | 1470×735 |
SOLAS B PACK (a×b) | 1335×680 | 1435×720 | |
Packaging dimension (mm) | SOLAS A PACK (c×d×e) | 1560×790×780 | 1540×805×790 |
SOLAS B PACK (c×d×e) | 1410×750×730 | 1510×790×780 | |
Required bollard pull (KN) | For 2knot speed | 0.80 | 1.00 |
For 3knot speed | 1.80 | 1.85 | |
Weight (kg) | ≤160 | ≤185 | |
20 Man Throw Over Board Life Raft
1.20 Man Life raft.
2.Capacity(Persons):20\25
3.Shape:Rectangular octagon.
4:Cylinder(L):6L×2\7.5L×2.
Type: 20\25Man Throw Over Board Life Raft
Suitable for installing in the vessels sailing on international voyages.
It meets the China MSA-“ Regulations for the Statutory Surveys of Ships and offshore Installations—Technical Regulations for the Statutory Surveys of Sea-going Ships Engaged inDomestic Voyages”2004,and it′s 2008 Amendments,Part4, Ch.3.and SOLAS(74/96),LSA,MSC.81(70),
MSC.226(82), MSC.218(82), MSC.293(87),ISO15738(2002).
Max. Storage Height: 18~36m.
Equipment Outfit: SOLAS A\B PACK.
Certificates:CCS,GL.
Type | 20Man | 25Man | |
Shape | Rectangular octagon
| ||
Capacity (Persons) | 20 | 25 | |
Dimension(L×W×H) | 4304×2974×1600 | 4894×3194×1650 | |
Cylinder | 6L×2 | 7.5L×2 | |
Container dimension (mm) | SOLAS A PACK (a×b) | 1435×720 | 1470×735 |
SOLAS B PACK (a×b) | 1335×680 | 1435×720 | |
Packaging dimension (mm) | SOLAS A PACK (c×d×e) | 1560×790×780 | 1540×805×790 |
SOLAS B PACK (c×d×e) | 1410×750×730 | 1510×790×780 | |
Required bollard pull (KN) | For 2knot speed | 0.80 | 1.00 |
For 3knot speed | 1.80 | 1.85 | |
Weight (kg) | ≤160 | ≤185 | |
