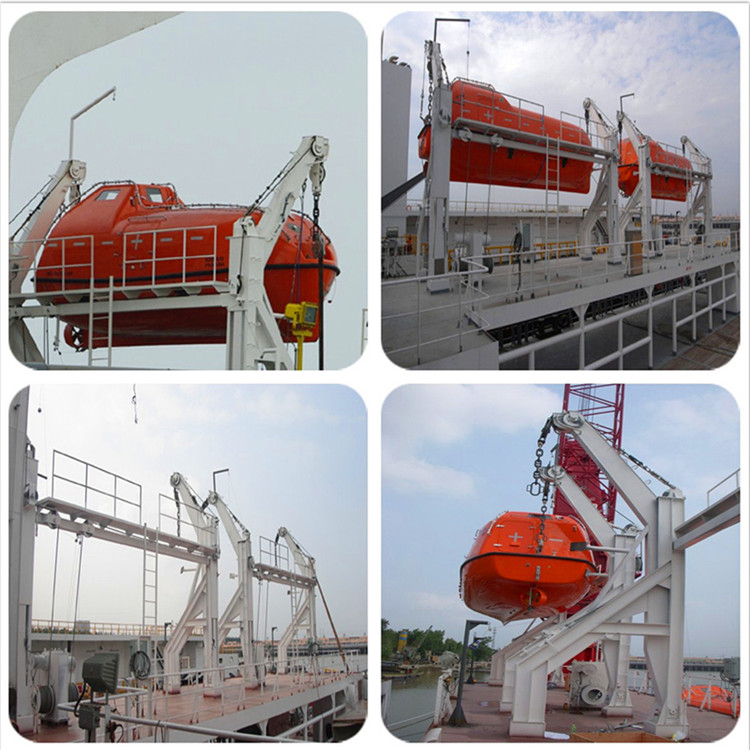

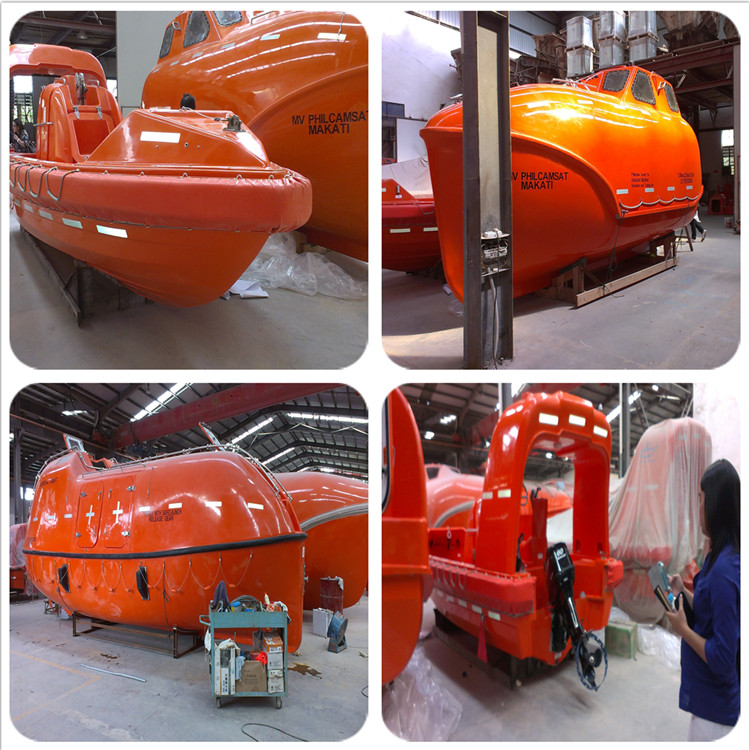

20 Person Marine Totally Enclosed FRP Lifeboat and Rescue Boat
Feature:
1.Material:F.R.P .
2.Certificate:CCS,EC,BV,ABS,RINA,DNV.
3.Capacity:16~40Person.
4.Standard: ISO 9001:2000 and Maritime Equipment Directive(MED).
Specification:
F.R.P Totally Enclosed Free Fall Lifeboat
The most popular series,F.R.P totally enclosed free fall lifeboat is developed from totally enclosed lifeboat.
The construction is specially strengthened to have light acceleration strike during water entry that can be
completed within seconds and escape rapidly from the vessels with longer self-stability.
The F.R.P totally enclosed free fall lifeboat suits particularly the more dangerous projects like offshore oil
drilling units etc.8models from 4.90 to 8.80M are available.
| Model | Main DIM. (M) | Capacity (p) | Length of Ramp(m) | Speed (knots) | Drop height (m) | Davit load (kg) |
| DY-FN-4.90 | 4.90*2.25*0.86 | 16 | 5.90 | >6 | 16 | 4040 |
| DY-FN-4.90 | 4320 | |||||
| DY-FN-5.80 | 5.8*2.55*0.90 | 25 | 7.0 | >6 | 17 | 5560 |
| DY-FF-5.80 | 5890 | |||||
| DYM-FN-6.65 | 6.65*2.70*1.20 | 30 | 8.2 | >6 | 21 | 6337 |
| DYM-FF-6.65 | 6637 | |||||
| DY-FN-6.80 | 6.80*2.70*1.20 | 31 | 8.20 | >6 | 22 | 6439.5 |
| DY-FN-6.80 | 6739.50 | |||||
| DY-FN-7.50 | 7.50*2.70*1.20 | 35 | 9.0 | >6 | 22 | 7374 |
| DY-FF-7.50 | 7724 | |||||
| DY-FN-8.50 | 8.80*2.94*1.20 | 40 | 10.2 | >6 | 25 | 8422 |
| DY-FF-8.50 | 8722 |
