DEYUAN

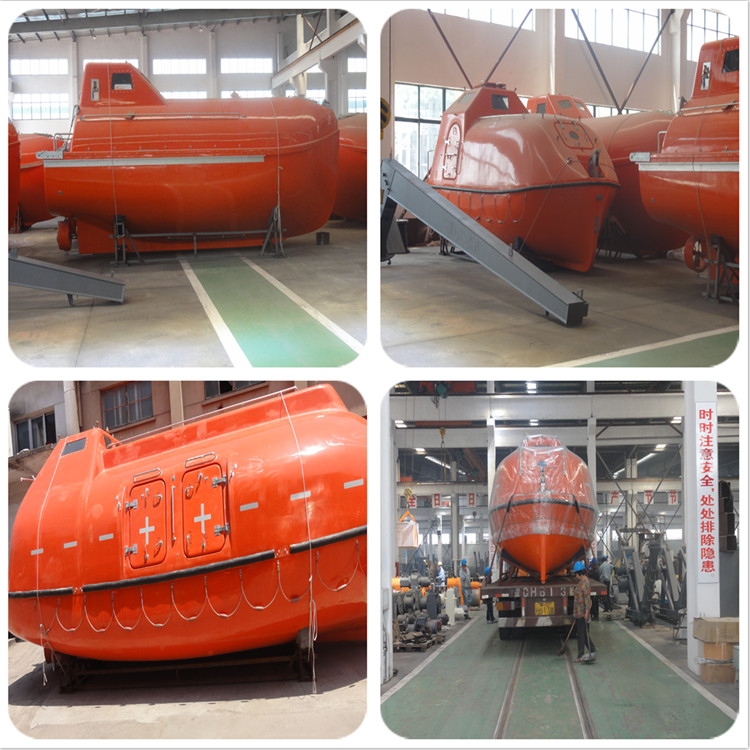

F.R.P Totally Enclosed Lifeboat
1.Material:F.R.P.
2.Certificate:CCS,EC,BV,ABS,RINA,DNV.
3.Capacity:22~130Person.
4.Standard: ISO 9001:2000 and Maritime Equipment Directive(MED)
Specification:

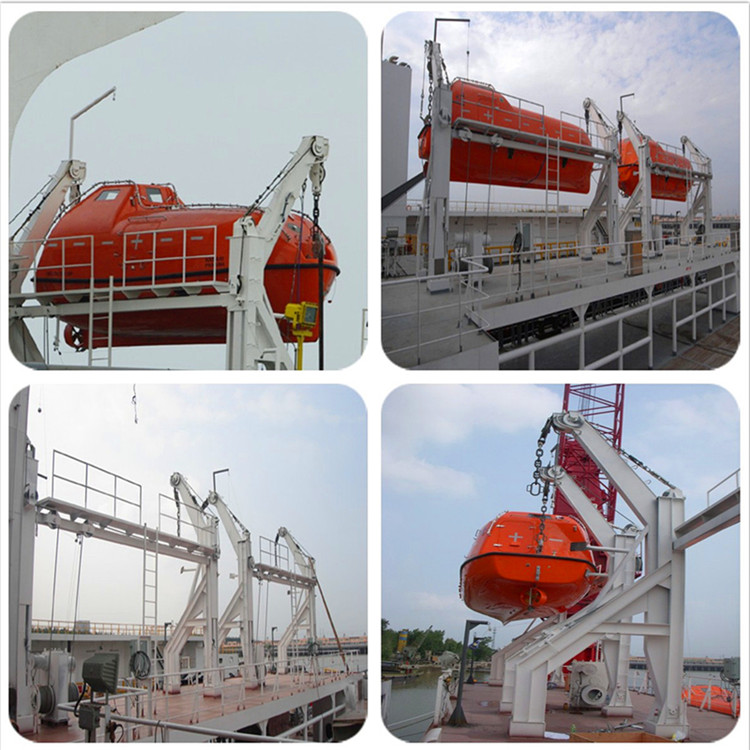

F.R.P. Totally enclosed life/rescue boat is suitable for use on board the ocean going vessels under worse sea
condition.14models are available from 5.00M to 10.90M.The tanker versions have good fire protection performance.
Type | Main dimension (m) | Passenger | Permitted height(m) | Rating landing angle | Host/power(kw) | Weigh (kg) | Full weight (kg) |
BCC-5.0M | 5.00*2.50*3.07 | 20 | 16 | 35° | 380J-3/20.6 3JH30A/22.1 DV29/21.3 | 2615 | 4265 |
BCF-5.0M | 5.20*2.50*3.07 | 20 | 16 | 35° | 2955 | 4605 | |
BCC-5.7M | 6.00*2.62*3.08 | 28 | 16 | 35° | 3182 | 5492 | |
BCF-5.7M | 6.00*2.62*3.08 | 28 | 16 | 35° | 3520 | 5830 | |
BCC-6.5M | 6.80*2.75*3.10 | 32 | 20 | 35° | 3530 | 6170 | |
FF-6.5M | 6.80*2.75*3.10 | 32 | 20 | 35° | 3840 | 6480 |
