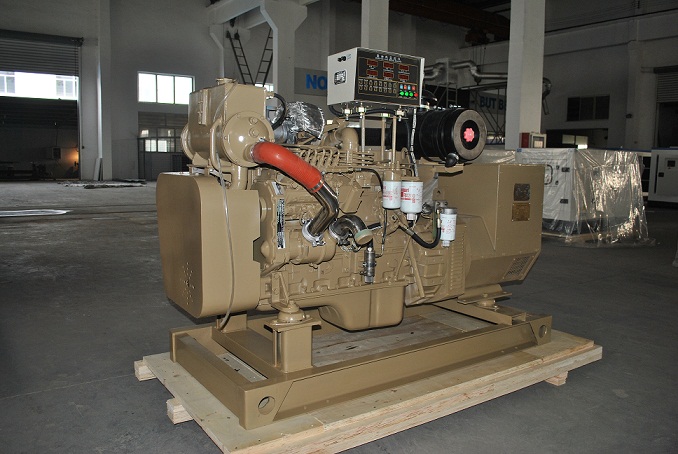

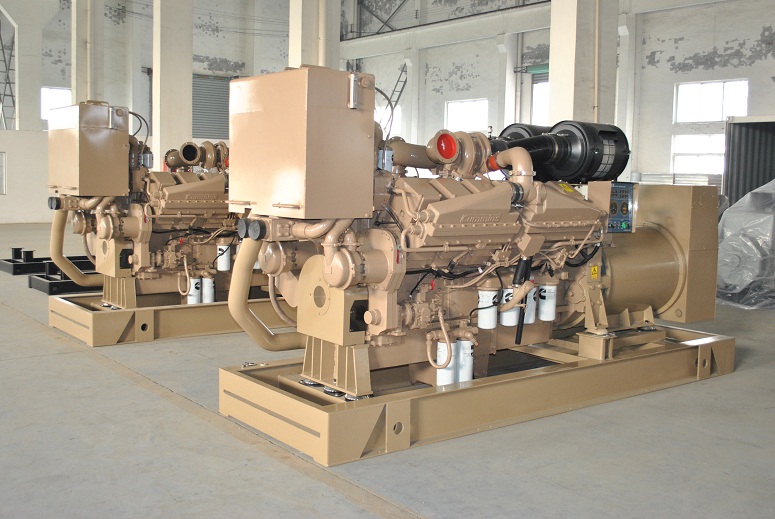

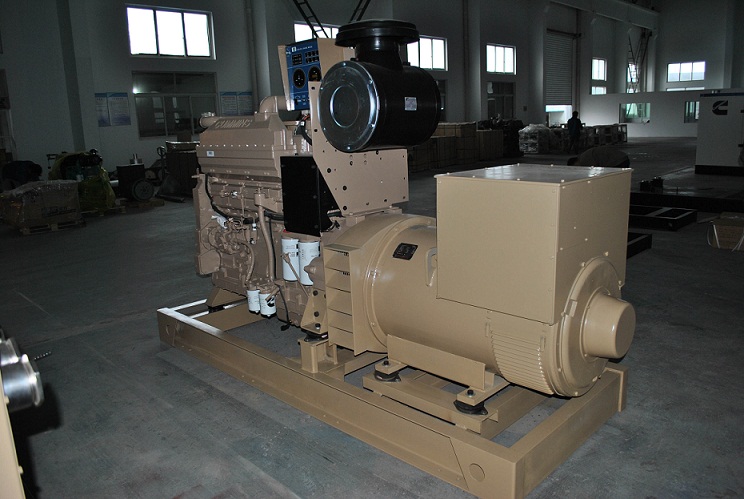

250kw Cummins Genset/Marine Diesel Generator Set
Cummins 250KW Marine Generator Set
Cummins generator set features:
Genset Model: DY-CGM250A
Engine Model: NTA855-D(M)(Cummins engine)
Alternator Model: HCM4E
Rated Power: 250 KW
Standby Power: 275 KW
Rated Voltage: 380/220V, 400/230V, 415/240V, 440/254V
Frequency: 50 Hz
Power Factor: 0.8
Winding Connection: 3-phase, 4-wire
Dimension(mm): 3100*1000*1600
Net Weight: 2800 KG
Genset engine details:
Engine Model: NTA855-D(M)
Rated Power: 284 KW@1500rpm
Standby Power: 321 KW
Bore * Stroke (mm): 140*152
Engine Type: 6 Cylinders, in Line, 14 L
Alternator for DY-CGM250A Generator Set | |
Alternator Brand | Stamford |
Alternator Model | HCM4E |
Frequency | 50 HZ |
Rated Votage | 380/220V, 400/230V, 415/240V, 440/254V |
Winding Connection | 3-phrase, 4-wire |
Power Factor(COS) | 0.8 |
Stator Winding | Double Layer Concentric |
Exciting Method | Brushless Self-exciting |
Insulation System | Class H |
Protection Class | IP23 |
Winding Leads | 12 |
Winding Pitch | Two Thirds |
Voltage Regulation | ± 1.0 % |
Waveform Distortion | <1.5% (no load) |
Maximum Overspeed | 2250 Rev/Min |
Telephone Interference(THF) | 2% |
