30KW Generator

Availability:
  • Deyuan Marine

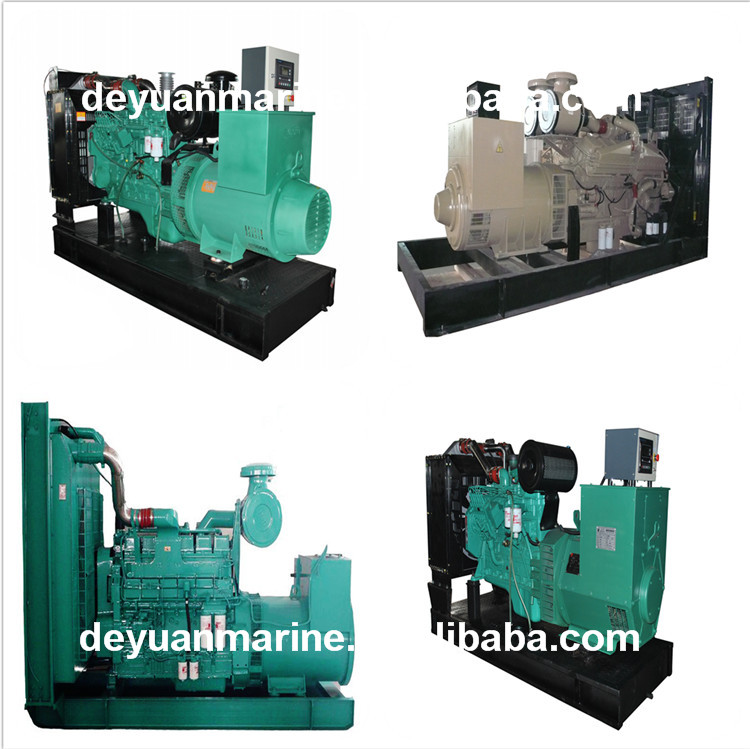

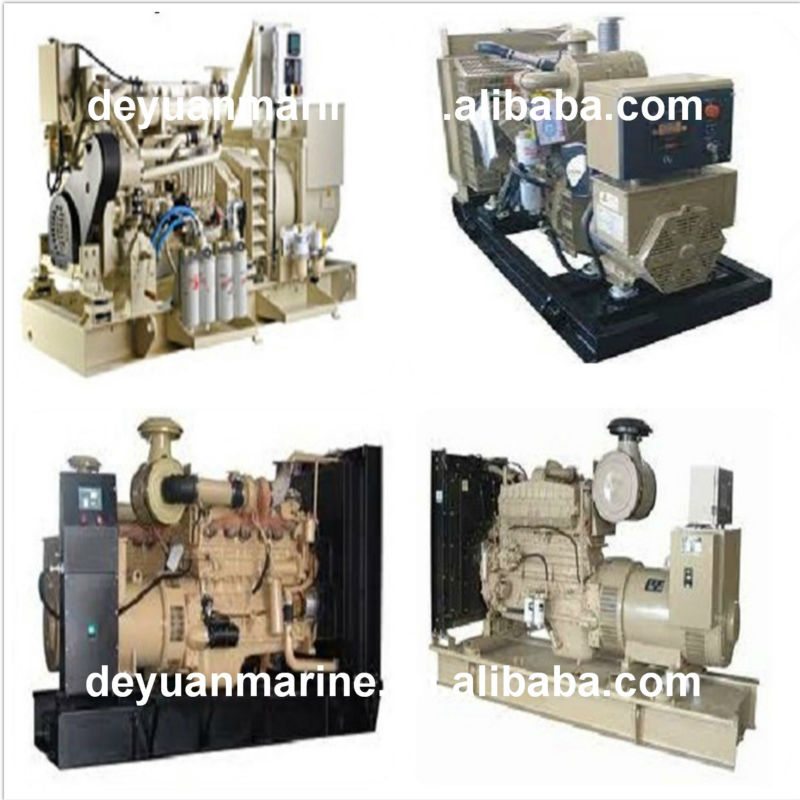

30KW Cummins marine generator set

1.Rated power:30 KW.

2.Standby power:33KW.

3.Frequency :50HZ.

4.Power factor:0.8.

5.Rated voltage:380/220V, 400/230V, 415/240V, 440/254V.



Rated speed/frequency:1500rpm/50HZ

Continuour output:120kw/150KVA

Standby output:132KW/165 KVA

Voltage,phase and wire:400v/230v,3 phase and 4 wires

Rated power factor:0.8

Maximum output current:85(A)

Engine details:

Model:TBD226B-6D5(Deutz engine)

Engine type:water-cooled,3cylinders in line,4stroke

Maximum output:132kw

Bore*stroke:105*120(mm)

Fuel consumption:30.3L/H(in full load)

Alternator details:

Alternator brand:stamford

Excitation:brushless

Protection class:IP23

Efficiency:88%

Voltage adjust range:≥±6%

Steady state voltage regulation:≤±1%

Voltage control:AVR
