32KW Marine Generator Set

Availability:
  • Deyuan Marine

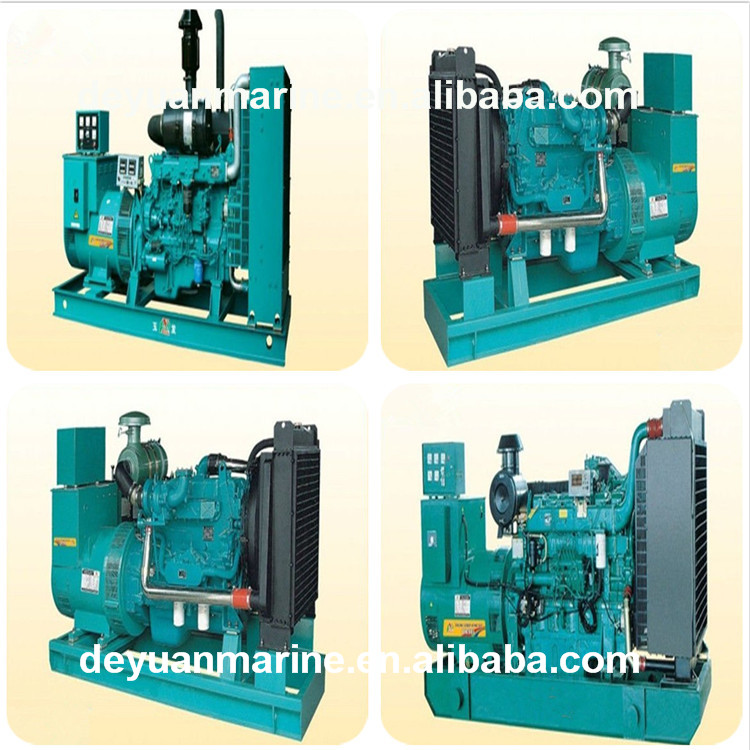

 32KW Marine generator set

32KW Marine generator set

1.Series:marine generator set.

2.Power range:25~150KVA.

3.Compact structure,small volume,light weight,strong  power.

4.Alternator:marathon,stamford brand.

32KW Marine generator set

226B series  marine generator set have a power range from 24KW-120KW.CCS,ZY,BV certificate are available.And the emission can meet the Euro II standard.

 generator features:

Compact structure,small volume,light weight,strong  power,low fuel consumption

Little vibration,high reliability,easy start,modular design.

Model

Backup output

(kw)

Continuous output

(Kw)

Rated voltage

(v)

Rated

Current

(A)

Fuel consumption

at rated load

Engine Model

CCFJ24J-WJ

26.4

24

400

43.5

4.8

D226B-3CD

CCFJ30J-WJ

33

30

400

54

5.9

TD226B-3CD

CCFJ40J-WJ

44

40

400

72

7.9

TD226B-4CD

CCFJ50J-WJ

55

50

400

90

9.9

TD226B-6CD

CCFJ64J-WJ

70.4

64

400

115

12.8

TD226B-6CD

CCFJ75J-WJ

82.5

75

400

135

16

TBD226B-6CD

CCFJ90J-WJ

99

90

400

163

18

TBD226B-6CD

CCFJ100J-WJ

110

100

400

191

20

TBD226B-6CD

CCFJ120J-WJ

132

120

400

217

24

TBD226B-6CD

More  Marine Genset can be offered,pls contact us for more details.
