DEYUAN
Life Raft:
1.Certificate:CCS and EC.
2.SOLAS approved.
3.Open automatically.
4.material:fibre reinforced plastic.
Life Raft :

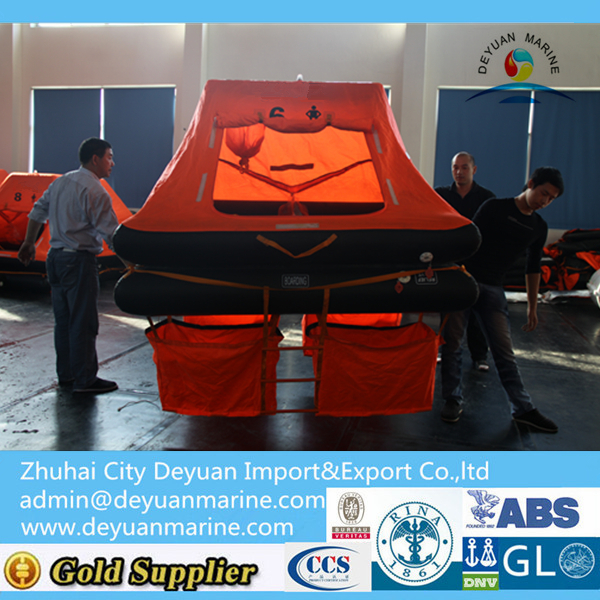

6 Persons Throw-Over Board Inflatable Life Raft :
Feature:
1.Certificate:CCS.
2.SOLAS approval.
3.Open automatically.
4.material:fibre reinforced plastic.
The Throw-overboard Inflatable Liferafts are stored in containers on deck an inflate in the water when the painter line is pulled.
After throw-over from ship, the life-raft can be inflated and opened automatically.
If the ship sinks very fast and the life-raft can not be thrown-over, the raft still can float up from water under the action of
Hydrostatic Release Unit can be inflated and opened automatically.
The standard sizes of the liferafts are available with:6,10,15,20 and 25 persons.
The liferafts with type approval by CCS and EC(EC was issued by GL).
Service Scope
It’s equipped for lifesaving of marine ship at international sea.
Application Standard
To comply with regulation SOLAS 74/96, LSA,MSC 81(70)
Air charging mode
a.Self-operated with air charging when it was drop from the ship
b.Self-operated with air charging when it come off from hydrostatic releasing device with Packing in canister.
6 persons Throw-over board Inflatable Life Raft:
Capacity:6 persons
Main dimension length:2446mm
Main dimension breadth:2260mm
(Co2+N2)*2/weight of gas:1200*2g
Max storage height:36M
Physical form:Regular octagon
Gross weight:85kg
The FRP container:Diameter 600*1140
Packaging size:1220*680*720mm
Photo:
Davit launched type life raft
Self-Righting And Davit-Launched Inflatable Liferaft
Throw Over Board Inflatable Liferaft SOLAS A PACK
Throw Over Board Inflatable Liferaft SOLAS B PACK
Open Reversible Inflatable Life Raft
50 persons life raft
