700T SWL Triplex type shark jaw with CCS/BV class approval

  • Deyuan Marine

700T SWL Triplex type shark jaw with CCS/BV class approval

1.product:shark jaw

2.capacity:100 to 700 tonnes SWL

3.Electro-hydraulic(variable, fixed, multi speed, hazardous environments)

4.-Inline vertical type Towing Pin

5.Angular close top type Towing Pin

6.Combine Modular type towing Pin& shark Jaw



Fork type shark jaw

capacity:100 to 700 Tonnes SWL

system features

Electro-hydraulic(variable, fixed, multi speed, hazardous environments)

-Inline vertical type Towing Pin

—Angular close top type Towing Pin

--Combine Modular type towing Pin& shark Jaw



*We builds a full range of shark Jaws for anchor handling tug supply vessels. Standard ratings

Are 100,200,300,400,500 and 700 Metric Tons and all units perform quick release at the rated Load.

*we customize our equipment to suit the operating characteristics of your vessels.

Third party certificate, load tests ,release tests and load monitoring systems are available options.

*Intended for us with both chain and wire rope. Replaceable jaw inserts are available for different chain sizes.

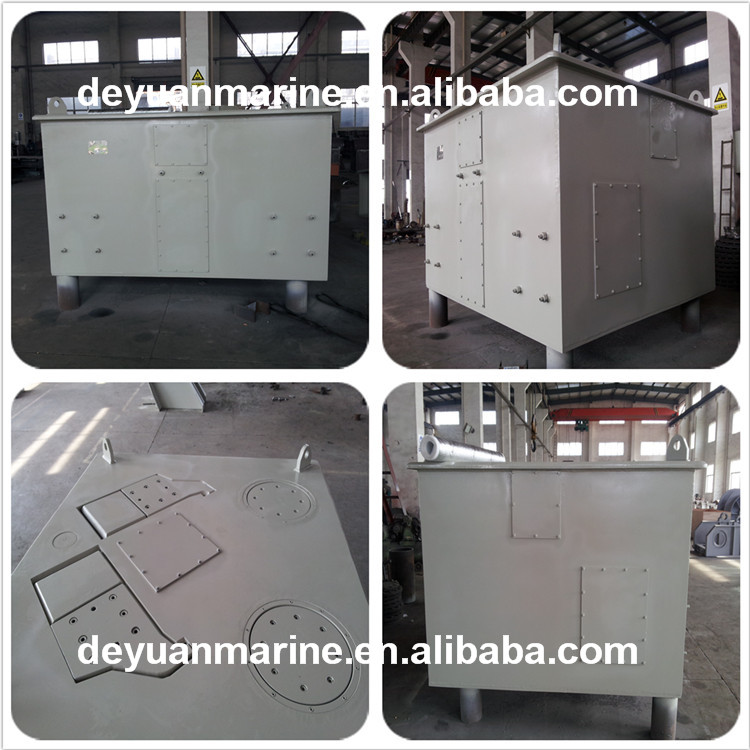

*When the jaws are retracted they are flush with the deck in their own watertight frame with drain fittings.

*All operations are remotely controlled from a control panel located in the pilot house and/or locally.

Controls take advantage of PLC based technology allowing for easier installation with less electrical wiring.

A dedicated hydraulic power unit is provided with each unit.



Shark Jaw Model

Towing pin model

Bollard pull

(ton)

Holding capacity

(ton)

Power reqired

(kw)

SJ-100

TP-100

40

100

15

SJ-200

TP-200

60

200

22

SJ-300

TP-300

85

300

22

SJ-400

TP-400

120

400

30

SJ-500

TP-500

150

500

30

SJ-700

TP-700

200

700

37
