DEYUAN

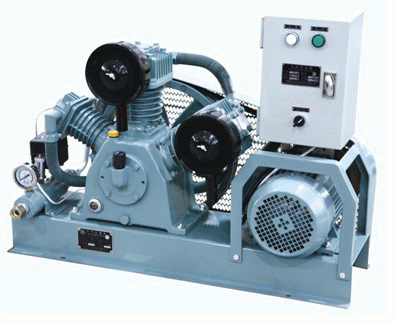

Piston Type Marine Air Compressor :
Air Cooling Piston Type Marine Air Compressor
Medium pressure 3.0MPa.
Vertical type.
Second stage compression.
Piston type.
Suitable for air bottle equal or smaller than 0.32m3.
| Model | Type | Displacement capacity | Rated pressure | Rotate speed | Motor power | Weight | Driving method | Overall size |
| m3/h | Mpa | r/min | KW | Kg | mm | |||
| CZF-33 | Vertical type. Second stage compression. Piston type. | 14.5 | 3 | 1200 | 4 | 160 | Belt type or Direct connection type. | 970x480x750 |
| CZ-10/30 | 18.5 | 1500 | 5.5 | 180 | ||||
| CZF20.4/3-C | 22 | 1800 | 5.5 | 180 |
