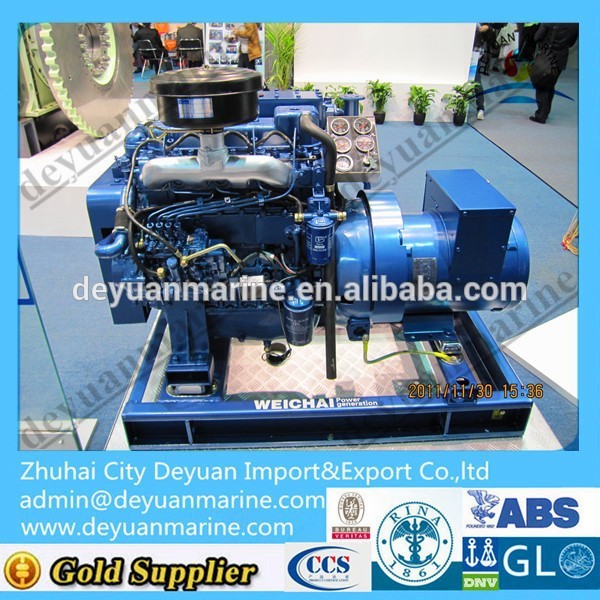

16KW marine diesel genset
1.Rated speed/frequency:1500rpm/50HZ.
2.Continuour output:16kw/20KVA.
3.Standby output:18KW/22.5KVA.
16KW marine diesel genset
Rated speed/frequency:1500rpm/50HZ
Continuour output:16kw/20KVA
Standby output:18KW/22.5KVA
Voltage,phase and wire:400v/230v,3 phase and 4 wires
Rated power factor:0.8
Maximum output current:60(A)
Engine details:
Model:D226B-3D
Engine type:water-cooled,3cylinders in line,4stroke
Maximum output:31kw
Bore*stroke:105*120(mm)
Fuel consumption:6.5L/H(in full load)
Alternator details:
Alternator brand:stamford,
Excitation:brushless
Protection class:IP23
Efficiency:88%
Voltage adjust range:≥±6%
Steady state voltage regulation:≤±1%
Voltage control:AVR
