DEYUAN

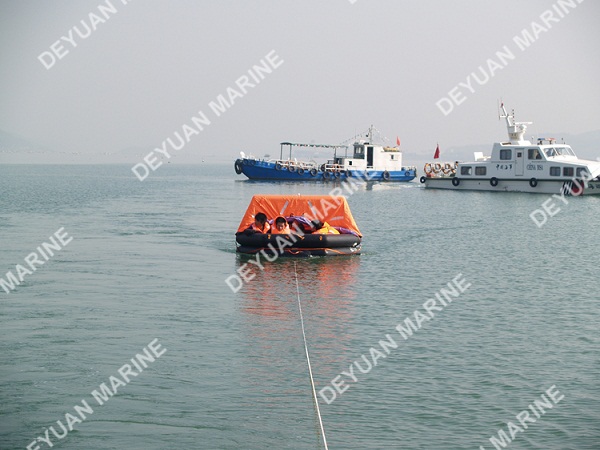

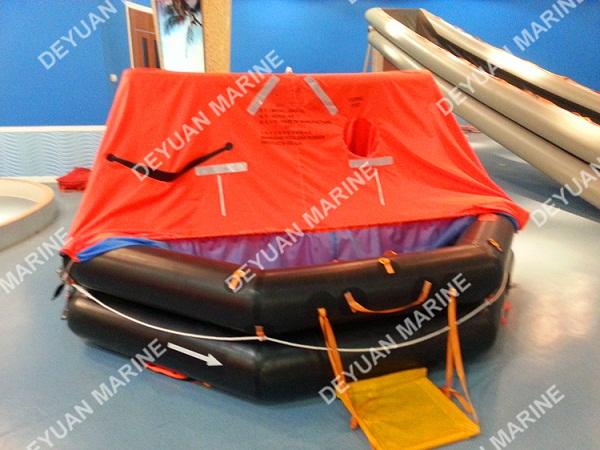

CCS Approved Throw Over Board Inflatable Life Raft
Type: 6\8 Man Throw Over Board Liferaft.
Suitable for installing in the vessels sailing on international voyages.
It meets the China MSA-" Regulations for the Statutory Surveys of Ships and offshore Installations- Technical Regulations for the Statutory Surveys of Sea-going Ships Engaged inDomestic Voyages"2004, and its 2008 Amendments, Part4, Ch. 3. And SOLAS(74/96), LSA, MSC. 81(70), MSC. 226(82), MSC. 218(82), MSC. 293(87), ISO15738(2002).
Max. Storage Height: 18~36m.
Equipment Outfit: SOLAS A\B PACK.
Certificates: CCS, GL.
Type | 6Man | 8Man | ||
Shape | Regular hexagon | |||
Capacity (Persons) | 6 | 8 | ||
Dimension(L×W×H) | 2104×2104×1200 | 2390×2390×1250 | ||
Cylinder | 4L×1 | 5L×1 | ||
Container dimension (mm) | SOLAS A PACK (a×b) | 1090×615 | ||
SOLAS B PACK (a×b) | 1045×545 | |||
Packaging dimension (mm) | SOLAS A PACK (c×d×e) | 1140×675×650 | ||
SOLAS B PACK (c×d×e) | 1100×600×590 | |||
Required bollard pull (KN) | For 2knot speed | 0.30 | 0.35 | |
For 3knot speed | 0.80 | 0.90 | ||
Weight (kg) | ≤78 | ≤90 |
