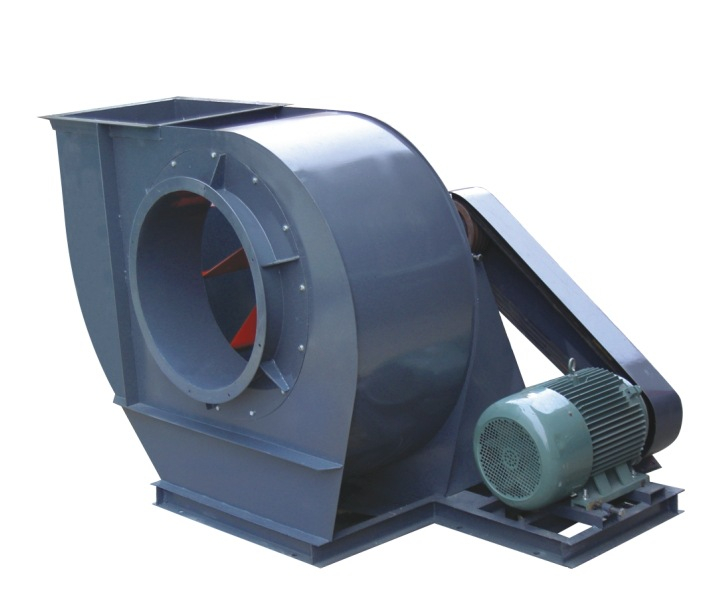

CSL Marine Hydro-Driven Centrifugal Fan


  • Centrifugal Fan


  • Copper

  • Free Standing

  • China (Mainland)


  • CSL-240,CSL-260

  • 0

  • 0

  • 2000~6000m3/h

  • 0


  • Engineers available to service machinery overseas

  • Copper, Stainless Steel

  • GB11799, GB3836-83

  • Copper

  • plywood case

  • 10-50days according to the quantity


CSL Marine Hydro-Driven Centrifugal Fan:


CSL centrifugal fan is movable fan driven by the fire fighting water.It enjoys high anti-explosive grade, and is capable of directly removing or delivering the flammable and explosive gaseous mixture or steam as well as those poisonous or harmful gas. It is an important equipment for the oil tanker and the chemical vessels.



CSL series explosion proof centrifugal fan is with high explosion proof grade, anti-corrosion,anti-swing,anti-vibration,and anti-shock.The whole fan is featured in simple and compact structure,low weight, easy operation as well as easy mobility. It is driven directly by the fire fighting water,is capable of delivering the dangerous gas such as flammable and explosive gas or steam.

CSL series centrifugal fan is composed of water turbine, frame, casing, rotor, impeller, etc. The water turbine is precisely casted by anti-corrosive copper alloy. The casing is welded by the stainless steel, the impellers are casted by the high strength aluminum alloy. The whole structure is without no spark. The angles for outlet are R90 degree for air supply type, R225 degree for air exhaust type.



Applicable Conditions:

The places where there are explosive grad IIB & IIC and group from T4 to T6.

Ambient temperature: -25 centigrade degree to 55 centigrade degree

Relative humidity of the air: not over 95%

Cyclical vacillation:+-22.5 degree

Sustained horizontal tilting: +-15 degree

Sustained vertical tilting:+-10 degree



Main Parameter:

Model Flow rate Static pressure Water pressure Water consumption D1 D2 D3 L B H n-d Weight
m3/h Pa Mpa m3/h kgs
CSL-240 2000-5000 920-1500 0.2-0.5 34-55 220 250 280 585 404 635 6-D10 55
CSL-260 3000-6000 1000-1500 0.2-0.5 33-59 220 250 280 645 546 642 6-D10 60
