DEYUAN

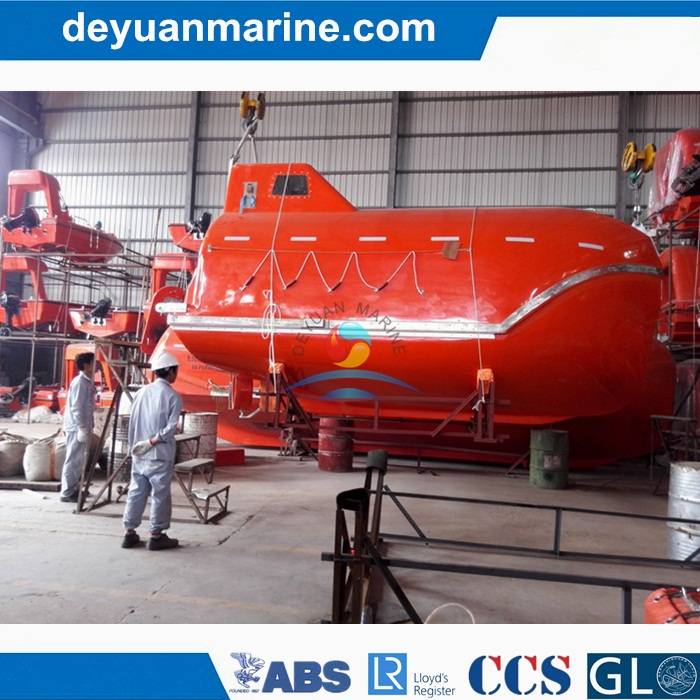

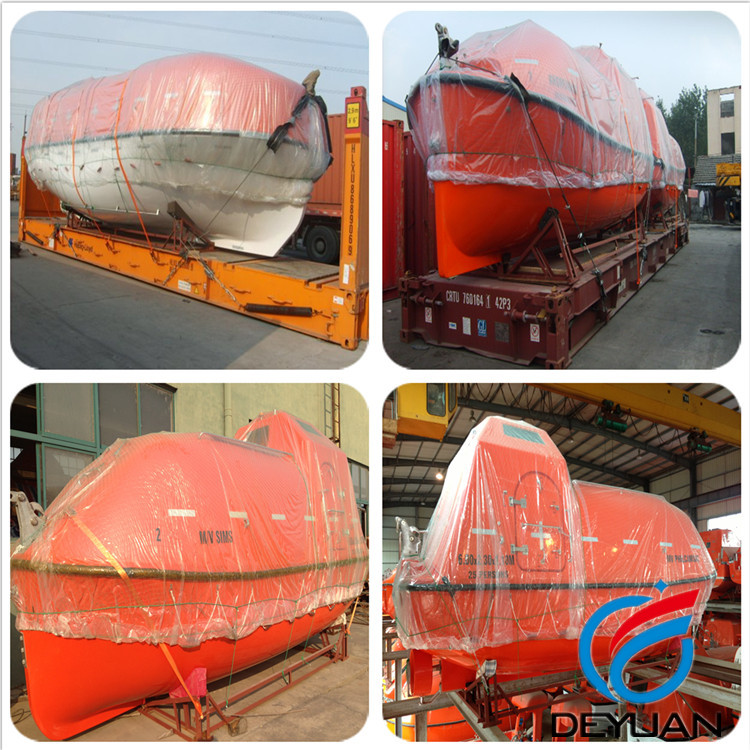

China Free Fall totally enclosed Life Boat
Overview:
Free fall lifeboat is the type that embarkation at the aft hatch,its building is according to the latest re gulations of
SOLAS and rules of international life saving equipments(LSA),Revision bill of MSC.218(82),MSC.272(85) and
resolutions of MSC.81(70),Revision bill of MSC.226(82),MSC.274(85).It can safely evacuate crew from vessels
or offshore platforms upon the slipways.The free fall release systems are specifically designed for easy activation
by the crew,safe and reliable.
Technical Parameter:
Type | Main dimension (m) | Passenger | Permitted height(m) | Rating landing angle | Host/power(kw) | Weigh (kg) | Full weight (kg) |
FC-5.2M | 5.20*2.50*3.07 | 20 | 16 | 35° | 380J-3/20.6 3JH30A/22.1 DV29/21.3 | 2615 | 4265 |
FF-5,2M | 5.20*2.50*3.07 | 20 | 16 | 35° | 2955 | 4605 | |
FC-6.0M | 6.00*2.62*3.08 | 28 | 16 | 35° | 3182 | 5492 | |
FF-6.0 | 6.00*2.62*3.08 | 28 | 16 | 35° | 3520 | 5830 | |
FC-6.8M | 6.80*2.75*3.10 | 32 | 20 | 35° | 3530 | 6170 | |
FF-6.8M | 6.80*2.75*3.10 | 32 | 20 | 35° | 3840 | 6480 | |
FC-9.0 | 9.00*2.80*3.33 | 44 | 22 | 35° | 4900 | 8530 | |
FF-9.0M | 9.00*2.80*3.33 | 44 | 22 | 35° | 5250 | 8880 |
