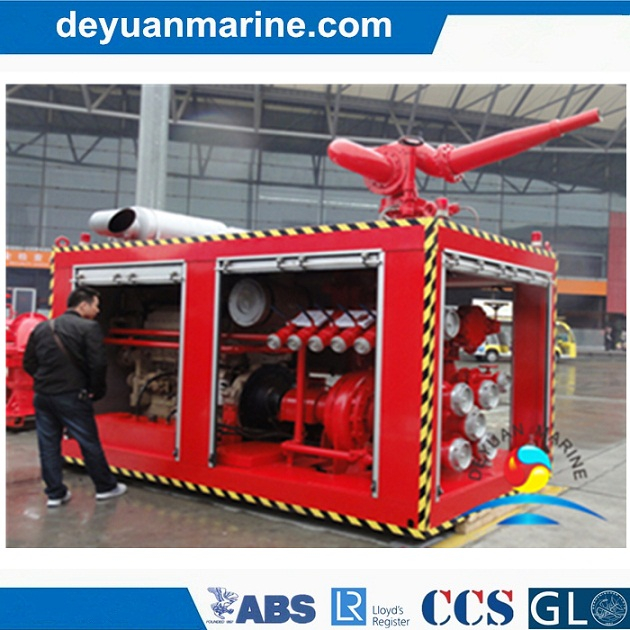

Class External Fi-Fi System (FiFi System)

Class External Fi-Fi System (FiFi System)

Driven by: Diesel engine. The fire pump and engine will be installed on a common base.
Consisting of:
1) Fire Pump: 2 sets
Type: Horizontal, single stage, centrifugal pump
Duty Specified

Capacity: 600 m3/h

Total Head: 130 m L. C.

Speed: 2100 rpm
Power absorbed: 273.6 kW (Seawater)

Efficiency: 80%

Discharge: Top, DN200 PN 25

Suction: End, DN250 PN 16

Direction of rotation: CW (viewing from driver end)
Materials of Construction

Casing: Nodular cast iron

Impeller: Bronze

Shaft: Stainless steel AISI 316

Packing: Soft packed

2) Diesel Engine: 2 sets

Engine Model: TBD234V8, China

Type: 4 Cycle, 8 Cylinder, electrical start, 24VDC
Rating Type: Heavy Duty
Rated Engine Power: 323kw @ 2100 rpm
Direction of rotation: CCW (viewing from driver end)

3) High Flexible Coupling
Mounted between PTO of diesel engine and pump
Final model to be selected by maker.
