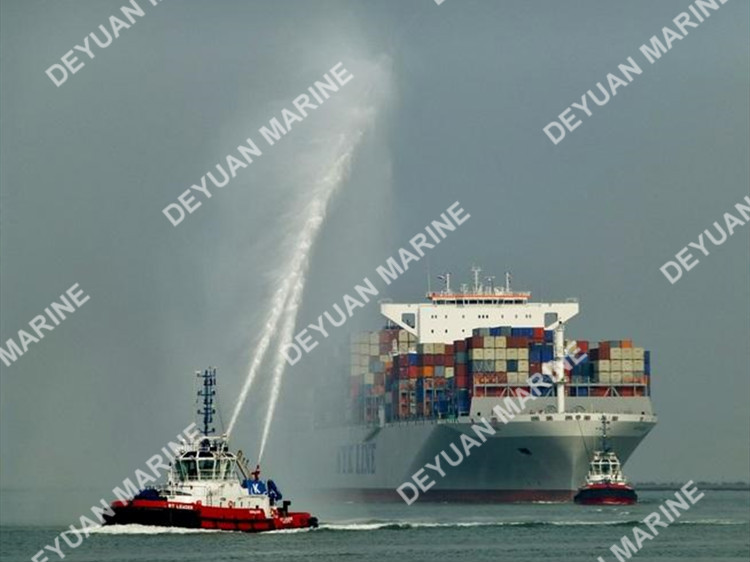

Marine External Fire Fighting System

Marine External Fire Fighting System

1)Type of FIFI system:fifi 1/4

2)Fire Monitor Quantity:1~2PCS

3)Fire Pump Quantity: 1~2PCS

4)Fire Monitor capacity:300M3/H X2 Or 600M3/H X 1

5)Fire Pump Capacity:  300M3/H X2 Or 600M3/H X 1

6) Driven Engine brand:CUMMINS,CAT,WEICHAI or other engine brand

7)Include remote control system

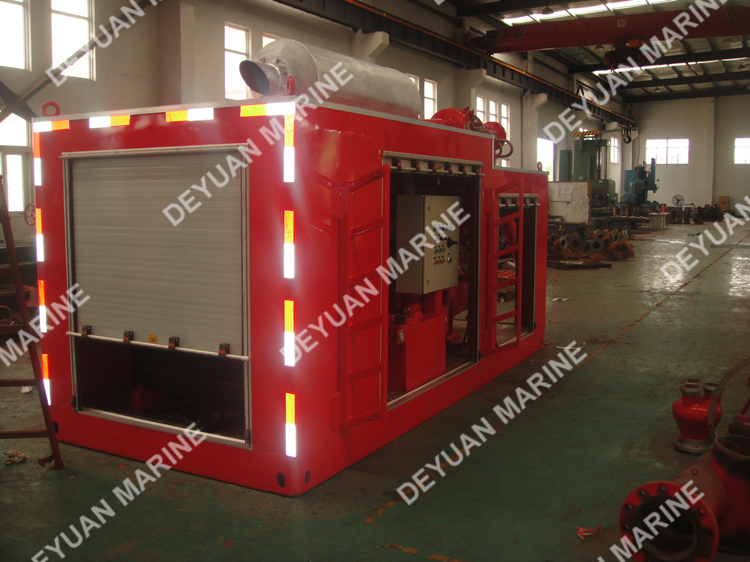

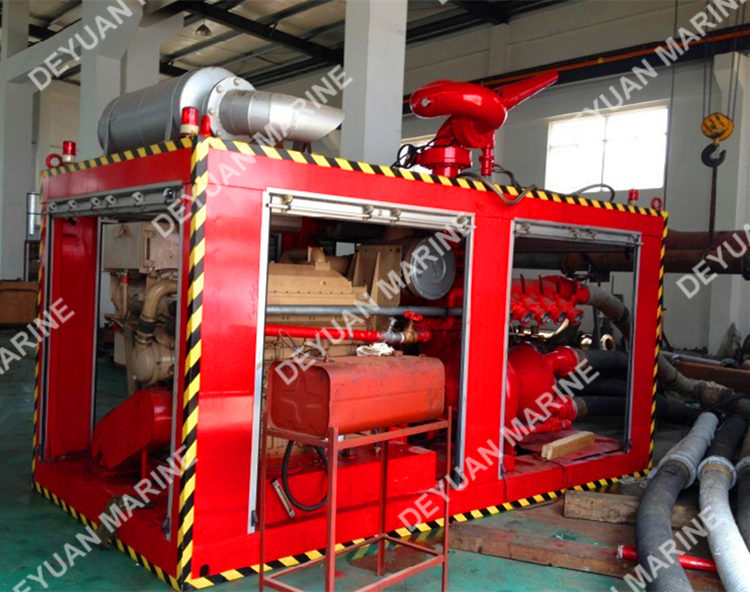

Driven by:Diesel engine. The fire pump and engine will be installed on a common base.

Consisting of:

 1) Fire Pump:2 sets

Type: Horizontal, single stage, centrifugal pump

Duty Specified

Capacity: 600 m3/h

Total Head: 130 m L.C.

Speed: 2100 rpm

Power absorbed : 273.6 kW (Seawater)

Efficiency: 80%

Discharge  : Top, DN200 PN 25

Suction: End, DN250 PN 16

Direction of rotation: CW (viewing from driver end)

Materials of Construction

Casing: Nodular cast iron

Impeller: Bronze

Shaft  : Stainless steel AISI 316

Packing: Soft packed

 2)Diesel Engine:2 sets

Engine Model:TBD234V8, China

Type:4 Cycle, 8 Cylinder, electrical start, 24VDC

Rating Type:Heavy Duty

Rated Engine Power:323kw @ 2100 rpm

Direction of rotation:CCW (viewing from driver end)

 3) High Flexible Coupling

Mounted between PTO of diesel engine and pump

Final model to be selected by maker.
