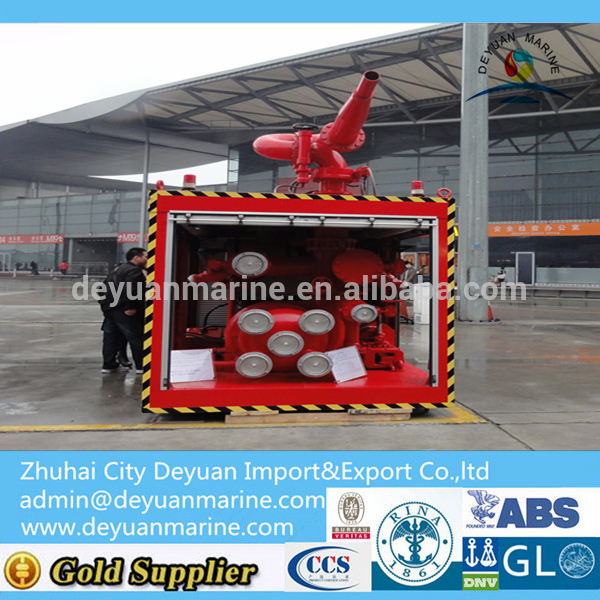

Marine FIFI System

Driven by:Diesel engine. The fire pump and engine will be installed on a common base.



Marine FIFI System

Consisting of:



1) Fire Pump:2 sets

Type: Horizontal, single stage, centrifugal pump

Duty Specified

Capacity: 600 m3/h

Total Head: 130 m L.C.

Speed: 2100 rpm

Power absorbed : 273.6 kW (Seawater)

Efficiency: 80%

Discharge  : Top, DN200 PN 25

Suction: End, DN250 PN 16

Direction of rotation: CW (viewing from driver end)

Materials of Construction

Casing: Nodular cast iron

Impeller: Bronze

Shaft  : Stainless steel AISI 316

Packing: Soft packed



2)Diesel Engine:2 sets

Engine Model:TBD234V8, China

Type:4 Cycle, 8 Cylinder, electrical start, 24VDC

Rating Type:Heavy Duty

Rated Engine Power:323kw @ 2100 rpm

Direction of rotation:CCW (viewing from driver end)



3) High Flexible Coupling

Mounted between PTO of diesel engine and pump

Final model to be selected by maker.
